SprintIR-W-F-100 SprintIR-WF-100 Gas Sensor For Healthcare Food Packaging Sport Science

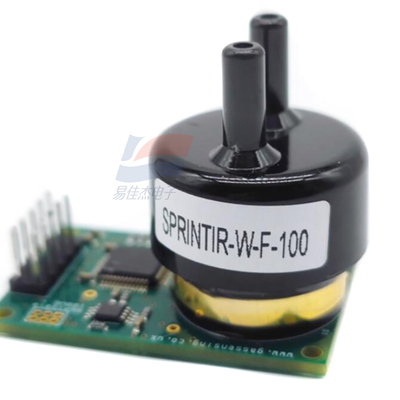

Large Image : SprintIR-W-F-100 SprintIR-WF-100 Gas Sensor For Healthcare Food Packaging Sport Science

Product Details:

Place of Origin:	UK
Model Number:	SprintIR-W-F-100 SprintIR-WF-100

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

SprintIR-W-F-100 SprintIR-WF-100 Gas Sensor For Healthcare Food Packaging Sport Science

Description

Power Input:	3.2 - 5.5 VDC (3.3 V Recommended)	Peak Current:	100 MA
Average Current:	< 15 MA	Warm - Up Time:	< 1 Min To Operational
Resolution:	10 Ppm	Sensor Life Expectancy:	> 15 Years
Highlight:	SprintIR-WF-100 gas sensor , Healthcare gas sensor , Food packaging gas analyzer

SprintIR-W-F-100 SprintIR-WF-100 Gas Sensor For Healthcare Food Packaging Sport Science

Features:
- High flow throughput capability
- Custom flow adaptor options available
- Built - in auto - zeroing function
- Low - power consumption, with the LEDs manufactured in - house by GSS for complete control of the signal chain
Applications: Healthcare, food packaging, sport science, and CO₂ fire suppression deployment
Absolute Maximum Ratings: ESD (Electro - Static Discharge) sensitive device. Continuous operation at or beyond the absolute maximum ratings may cause permanent damage to the sensor.

Measurement Range	Available in multiple versions, such as 0 - 5%, 0 - 20%, 0 - 60%, 0 - 100%
Accuracy	± 70 ppm ± 5% of reading (100% range: ± 300 ppm ± 5% of reading)
Resolution	10 ppm
Measurement Rate	20 readings per second
Non - linearity	< 1% of FS
Pressure Dependence	0.15% of reading per mbar in normal atmospheric conditions
Operating Pressure Range	500 mbar - 10 bar (500 mbar to 2 bar with flow - through adaptor)
Warm - up Time	< 1 minute
Operating Temperature Range	0 °C to 50 °C (standard); - 25 °C to 55 °C (extended range)
Humidity Range	0 to 95%, RH non - condensing

SprintIR-W-F-100 SprintIR-WF-100 Gas Sensor For Healthcare Food Packaging Sport Science 0
