AOM-09 Oxygen Sensor Is A Specialized Electrochemical Sensor Designed For Measuring Oxygen Concentration In Medical Equipment

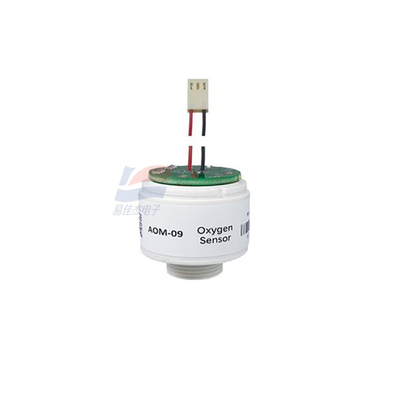

Large Image : AOM-09 Oxygen Sensor Is A Specialized Electrochemical Sensor Designed For Measuring Oxygen Concentration In Medical Equipment

Product Details:

Place of Origin:	CN
Brand Name:	IRS4
Model Number:	AOM-09

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

AOM-09 Oxygen Sensor Is A Specialized Electrochemical Sensor Designed For Measuring Oxygen Concentration In Medical Equipment

Description

Output Voltage:

9~13mV (in Air)

Measurement Range:

0~100 Vol.% O₂

Response Time (T90):

<15s

Load Resistance:

>10kΩ

Highlight:

medical oxygen sensor

electrochemical oxygen sensor

oxygen concentration sensor

AOM-09 Oxygen Sensor Is A Specialized Electrochemical Sensor Designed For Measuring Oxygen Concentration In Medical Equipment

The AOM-09 oxygen sensor is a specialized electrochemical sensor designed for measuring oxygen concentration in medical equipment. It features a molded main body design, with characteristics such as fast response and long service life.

The AOM-09 oxygen sensor operates without the need for an external power supply. All units undergo professional and accurate product calibration and temperature compensation before leaving the factory. It can be used as a sensing component in oxygen analyzers, such as oxygen concentrator control devices, medical ventilators, anesthesia equipment, incubators, etc.

Product Model	AOM-09
Working Principle	Partial Pressure Electrochemical
Output Voltage	9~13mV (in air)
Measurement Range	0~100 vol.% O₂
Response Time (T90)	<15s
Linearity	Full-scale linearity
Temperature Compensation	<2% O₂ equivalent (0~40°C)
Load Resistance	>10kΩ
Interface	Molex 3-pin connector (2.54mm, with connecting wire)
Housing Material	White ABS
Weight	Approximately 40g
Operating Temperature Range	0~50°C
Operating Pressure Range	0.5~2.0Bar
Operating Humidity Range	0~99% RH (non-condensing)
Long-term Drift	<5% (voltage attenuation per year, in 100% O₂ environment)
Service Life	1.5×10⁶ % O₂ hours (at 20°C)
Shelf Life	13 months from the date of shipment

AOM-09 Oxygen Sensor Is A Specialized Electrochemical Sensor Designed For Measuring Oxygen Concentration In Medical Equipment 0
