SPSTAXF1SS Sensepoint Detector Specifically Designed To Measure Methane

Large Image : SPSTAXF1SS Sensepoint Detector Specifically Designed To Measure Methane

Product Details:

Place of Origin:	USA
Brand Name:	IRS4
Model Number:	SPSTAXF1SS

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

SPSTAXF1SS Sensepoint Detector Specifically Designed To Measure Methane

Description

Measuring Object:	Flammable Gas	Measuring Range:	0 - 100% LEL
Measuring Accuracy:	±5% Fs	Resolution:	1% LEL
Power Supply:	24VDC	Voltage:	24V
Highlight:	methane gas sensor , Sensepoint methane detector , industrial methane measurement sensor

SPSTAXF1SS Sensepoint Detector Specifically Designed To Measure Methane

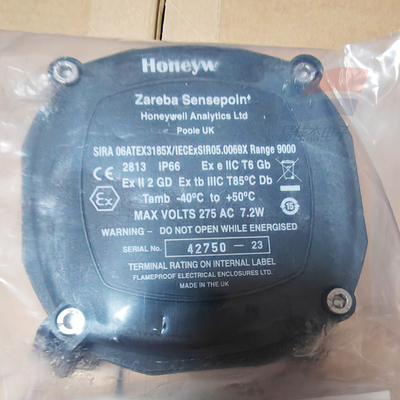

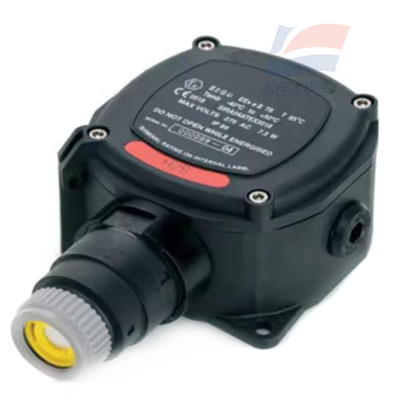

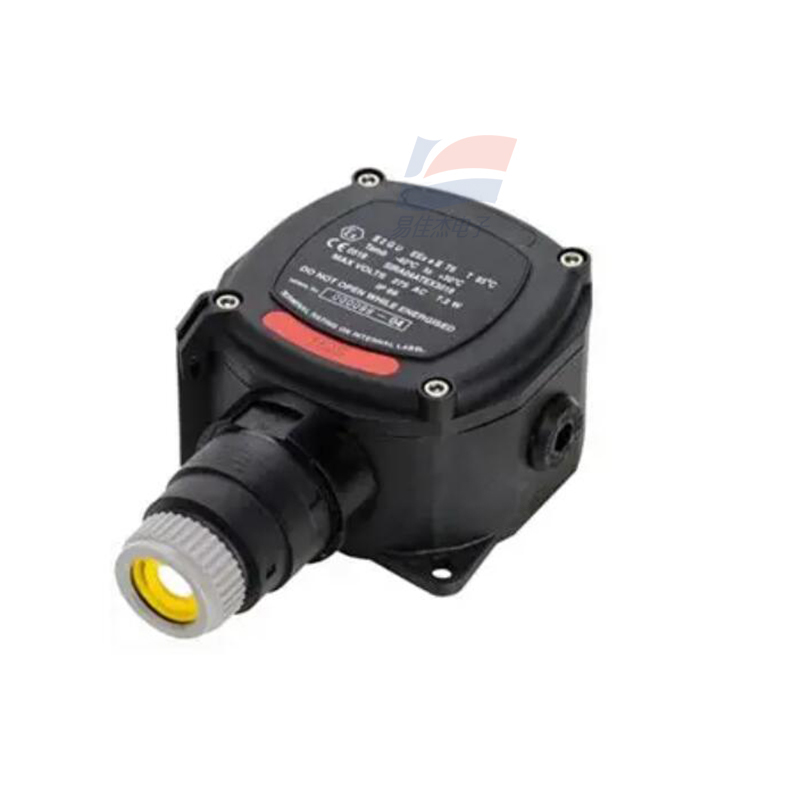

The SPSTAXF1SS is a spare sensor for the Sensepoint detector. It is specifically designed to measure methane gas with a measurement range of 0 - 100% LEL (Lower Explosive Limit).

This sensor is part of the Sensepoint range of gas detectors, which offer users a cost-effective solution to their gas monitoring needs, suitable for indoor or outdoor use, and even in potentially explosive atmospheres. The Sensepoint flammable gas detectors, to which the SPSTAXF1SS belongs, are designed for direct connection with the Honeywell Analytics' range of touchpoint controllers. They feature poison-resistant catalytic bead technology and have a typical operational life of 2 to 5 years.

Type	Fixed - type
Measuring Object	Flammable Gas
Measuring Range	0 - 100% LEL
Measuring Accuracy	±5% Fs
Resolution	1% LEL
Power Supply	24VDC
Voltage	24V
Electrical Connection	3 - wire mv bridge (0 - 100% LEL): 2.9 - 3.5V, 0.7W, 200mA constant current; 2 - wire loop - powered (toxic & oxygen): 4 - 20mA (plus screen), 16 - 30VDC, 0.9W
Junction Box Terminal Block	BK4 terminal block (4 - way), 4 x 0.5mm² (20AWG) to 2.5mm² (14AWG)
Junction Box Inlet	1 x M20, 1 x 3/4" NPT, 1 x 1/2" NPT
Material	Polyphenylene Sulphide (PPS), fire - retardant GFP
Size	201x66x99mm
Weight	0.5kg (approximate, including junction box)
IP Rating	IP65 as standard, IP66 with weather protection
Operating Temperature Range	- 40°C to 50°C (- 40°F to 122°F)
Operating Humidity Range	Continuous: 20 - 90% RH (non - condensing); Intermittent: 10 - 99% RH (non - condensing)
Operating Pressure	90 - 110kPa
Storage Temperature Range	- 40°C to 50°C (- 40°F to 122°F)
Catalytic Bead Feature	Poison - resistant
Typical Operational Life	2 to 5 years
Compatibility	Metric and NPT compatibility
