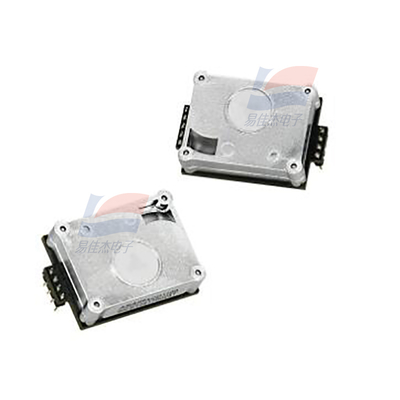

ACD1100 NDIR Carbon Dioxide Gas Sensor For Aair Quality Monitoring Equipment

Large Image : ACD1100 NDIR Carbon Dioxide Gas Sensor For Aair Quality Monitoring Equipment

Product Details:

Place of Origin:	CN
Brand Name:	IRS4
Model Number:	ACD1100

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

ACD1100 NDIR Carbon Dioxide Gas Sensor For Aair Quality Monitoring Equipment

Description

Power Supply:	4.75 - 5.25 V	Detection Range:	400 - 5000 Ppm
Accuracy:	±(50 Ppm + 5% Reading)	Lifespan:	>5 Years
Operating Humidity:	0 - 95% RH	Resolution:	1 Ppm
Highlight:	NDIR carbon dioxide gas sensor , air quality monitoring CO2 sensor , ACD1100 CO2 gas detector

ACD1100 NDIR Carbon Dioxide Gas Sensor For Aair Quality Monitoring Equipment

Detection Principle: The ACD1100 uses the non - dispersive infrared (NDIR) principle to detect the concentration of carbon dioxide in the air.
Advantages: It has the advantages of good selectivity, no oxygen dependence, and long life.
Output Interface: With digital interface output (IIC/UART), it is easy to use.
Technology Integration: The ACD1100 is a high - performance sensor that integrates infrared absorption gas detection technology, precision optical path, and high - precision signal detection circuit.
Application Scenarios: Suitable for air quality monitoring equipment, fresh air systems, air purification equipment, HVAC refrigeration equipment, etc.

Model	ACD1100
Sensor Type	Carbon Dioxide Infrared Sensor
Detection Principle	NDIR (Non - Dispersive Infrared)
Power Supply Voltage	4.75 - 5.25 V
Operating Temperature	0 °C - 50 °C
Operating Humidity	0 - 95% RH (Non - condensing)
Output Type	I2C / UART
Detection Range	400 - 5000 ppm
Accuracy	±(50 ppm + 5% of the reading value)
Resolution	1 ppm
Response Time	2 s
Preheat Time	120 s
Lifespan	> 5 years

ACD1100 NDIR Carbon Dioxide Gas Sensor For Aair Quality Monitoring Equipment 0
