ANH3000 Ammonia Gas Sensor Low Power Consumption Signal Output

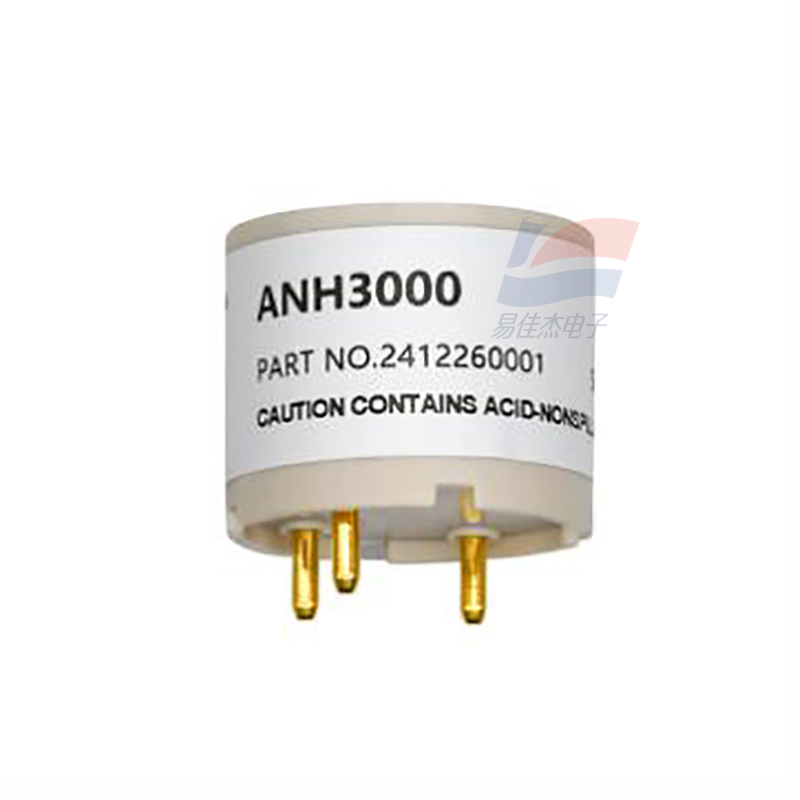

Large Image : ANH3000 Ammonia Gas Sensor Low Power Consumption Signal Output

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	ANH3000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

ANH3000 Ammonia Gas Sensor Low Power Consumption Signal Output

Description

Measuring Range:

0~100 Ppm

Upper Limit:

200 Ppm

Sensitivity:

40±12 NAppm

Baseline (20℃):

<±10 Ppm

Highlight:

ANH3000 ammonia gas sensor

low power gas sensor

ammonia sensor signal output

ANH3000 Ammonia Gas Sensor Low Power Consumption Signal Output

Ammonia sensor
⚫ Stable signal output
⚫ Fast response
⚫ Low power consumption
⚫ High linearity

Product Description
ANH3000 is a three-electrode electrochemical ammonia sensor that determines the ammonia concentration by measuring the redox current between electrodes.
This sensor has the characteristics of fast response and stable output signal. It can directly replace the same type of three-electrode ammonia sensor on the market, providing customers with high-quality and low-cost ammonia detection solutions.

Specification:

Response time T90	≤ 90S
Repeatability (tested on the same day)	≤ 10%
Long-term output drift	<±2%/month
Zero drift	<±10ppm/year
Expected life	24 months
Temperature dependence	<±15ppm

ANH3000 Ammonia Gas Sensor Low Power Consumption Signal Output 0
