APM10 Laser Particle Sensor Digital Output Small Size Stronger Anti Interference Performance

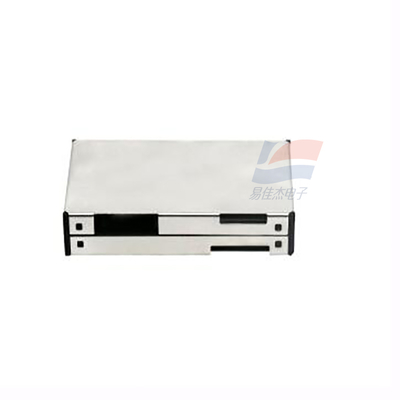

Large Image : APM10 Laser Particle Sensor Digital Output Small Size Stronger Anti Interference Performance

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	APM10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

APM10 Laser Particle Sensor Digital Output Small Size Stronger Anti Interference Performance

Description

Measuring Range:

0.3-10um

Concentration Range:

0-1000m3

Measurement Accuracy:

±15m3

Power Supply Voltage (DC):

4.75-5.25V

Highlight:

laser particle sensor digital output

small size gas sensor

anti interference particle sensor

APM10 Laser Particle Sensor Digital Output Small Size Stronger Anti Interference Performance

APM10 contains a laser emitting element and a light detecting element. The two elements are placed in a cross-shaped manner inside the housing. The light detecting element collects scattered light intensity in real time. When air flows through the sensor cavity, the particles in the cavity air cause laser scattering. The light detecting element collects the change in scattered light intensity. The microprocessor calculates the equivalent particle size of the particles and the number of particles of different sizes per unit volume based on the Mie (MIE) theory.

Specification:

Working current	50-100mA
Data refresh frequency	1sec
Lifespan greater than	3
Dimensions	4931.510.8 mm
Working temperature	-10~50℃
Storage temperature	-30~70℃

APM10 Laser Particle Sensor Digital Output Small Size Stronger Anti Interference Performance 0
