Product Details:
|
| Supply Voltage: | 3.3V DC Regulated ± 5% | Operating Power: | 125 MW |
|---|---|---|---|
| Warm - Up Time: | 15 Min | Operating Temperature: | 0 °C To 50 °C |
| Operating Humidity: | 0% RH To 95% RH | Storage Temperature: | - 40 °C To 80 °C |
| Highlight: | MICS-VZ-89TE air quality module,indoor air quality sensor,gas sensor for air monitoring |
||

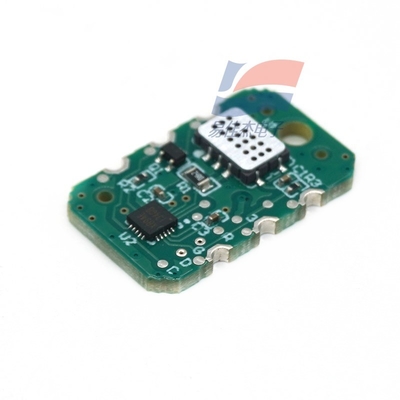

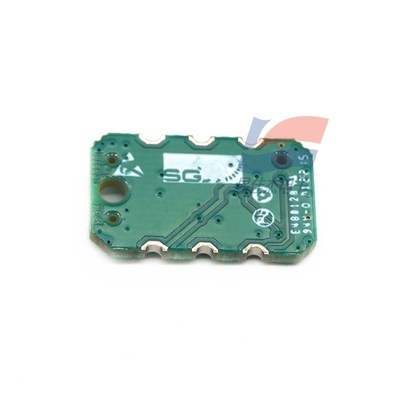

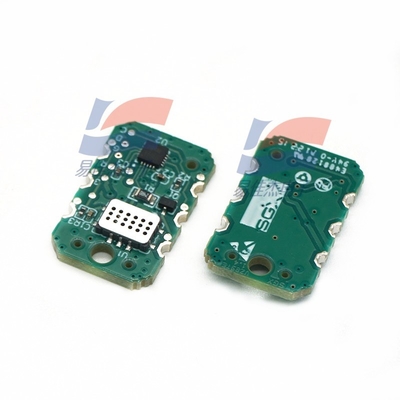

MICS-VZ-89TE Indoor Air Quality Module For Indoor Air Quality Monitoring
Features:
Application Areas:
| Supply Voltage | 3.3V DC regulated ± 5% |
| Operating Power | 125 mW |
| Warm - up Time | 15 min |
| Operating Temperature | 0 °C to 50 °C |
| Operating Humidity | 0% RH to 95% RH (non - condensing) |
| Storage Temperature | - 40 °C to 80 °C |
| Storage Humidity | 0% RH to 95% RH (non - condensing) |
| Detectable Gas Range | TVOC 0 - 1000 ppb, CO2 equivalent 400 - 2000 ppm |
| Output Type | Pulse - Width Modulation (PWM) and I2C |
![]()
