H2/CA-1000 Hydrogen Gas Sensors High Selective H2 Detection Use For Medical

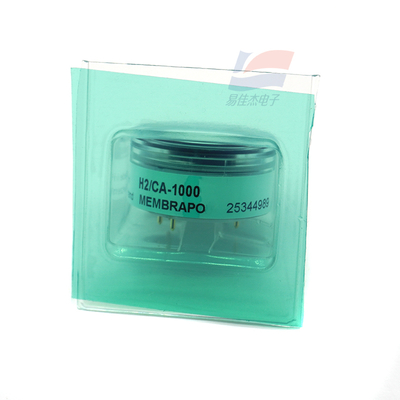

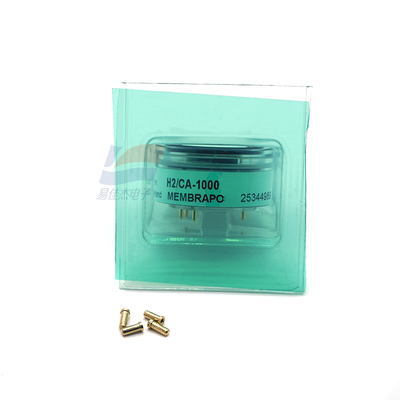

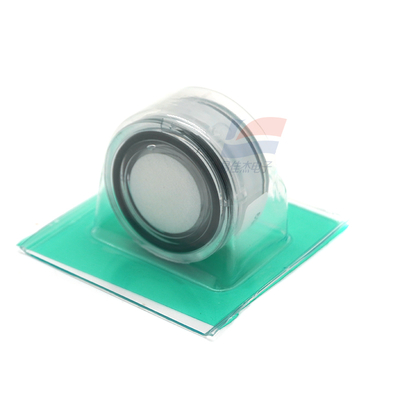

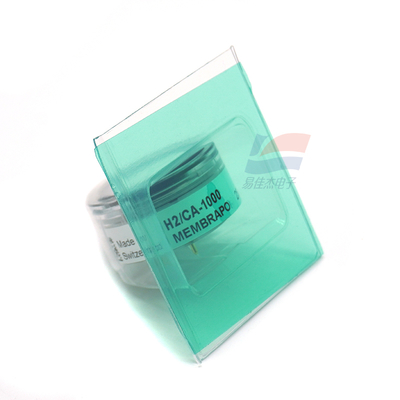

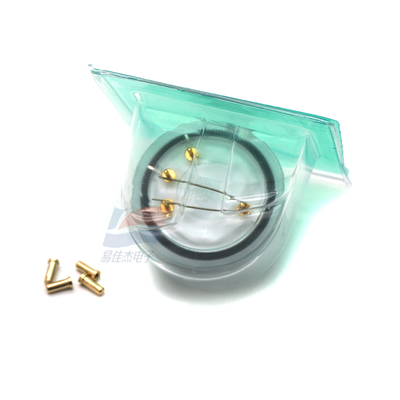

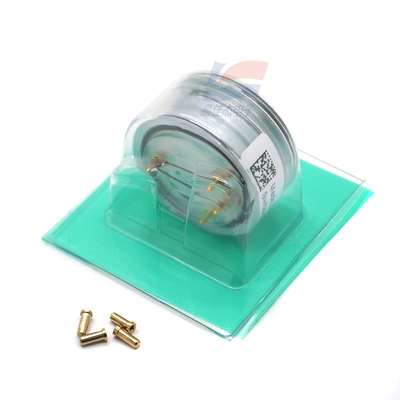

Large Image : H2/CA-1000 Hydrogen Gas Sensors High Selective H2 Detection Use For Medical

Product Details:

Place of Origin:	Switzerland
Brand Name:	Membrapor
Model Number:	H2/CA-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Packing
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000pcs/month

Contact Now

H2/CA-1000 Hydrogen Gas Sensors High Selective H2 Detection Use For Medical

Description

Operation Principle:

3-Electrode Electrochemical

Nominal Range:

0 - 1000 Ppm

Maximum Overload:

2000 Ppm

Inboard Filter:

To Remove CO

Highlight:

H2 gas sensor for medical use

high selective hydrogen gas detector

CA-1000 H2 detection sensor

H2/CA-1000 Hydrogen Gas Sensors High Selective H2 Detection Use For Medical

Key Features
• Highly selective H2 detection in presence of CO

Applications
• Medical Applications
• H2 Detection in H2/CO-Mixtures
• Medical Applications

Electrical

Rec. Load Resistor	10 - 33 Ω
Bias (V_Sens-V_Ref)	not recommended
Conformity to RoHS directive	RoHS Compliance

Environmental

Relative Humidity Range	15 % to 90 % RH non-condensing
Temperature Range	-40 °C to 50 °C
Pressure Range	Atmospheric
Pressure Coefficient	N.D.
Humidity Effect	None

Lifetime

Expected Operation Life	2 years in air
Expected Long Term Output Drift in air	< 2 % signal loss per month after stabilization
Filter Life	Not Applicable
Storage Life	6 months in container
Rec. Storage Temperature	5°C - 20°C
Warranty Period	12 months from date of dispatch
