H2/C-5000 3-Electrode Electrochemical Hydrogen Gas Sensor for Safety and Process Control

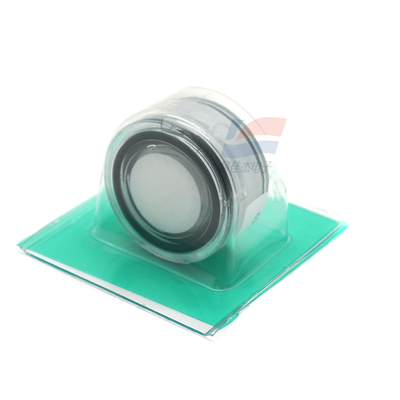

Large Image : H2/C-5000 3-Electrode Electrochemical Hydrogen Gas Sensor for Safety and Process Control

Product Details:

Place of Origin:	Switzerland
Model Number:	H2/C-5000

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

H2/C-5000 3-Electrode Electrochemical Hydrogen Gas Sensor for Safety and Process Control

Description

Nominal Range:	0 - 5000 Ppm	Maximum Overload:	10000 Ppm
Output Signal:	9.5 ± 2.5 NA/ppm	Resolution (Electronics Dependent):	< 5.3 Ppm
T90 Response Time:	< 45 S	Typical Baseline Range (pure Air, 20°C):	-40 Ppm To 30 Ppm
Highlight:	hydrogen gas safety sensor , 3-electrode electrochemical gas sensor , process control hydrogen detector

H2/C-5000 3-Electrode Electrochemical Hydrogen Gas Sensor for Safety and Process Control

Applications:

• Safety and Process Control

Important Application Notes:

H2 sensors lose >10% of their initial sensitivity within the first month after production before the output stabilizes.

Rec. Load Resistor	10 - 33 Ω
Bias (V_Sens-V_Ref)	not recommended
Conformity to RoHS directive	RoHS Compliance
Relative Humidity Range	15 % to 90 % RH non-condensing
Temperature Range	-40 °C to 50 °C
Pressure Range	Atmospheric ± 10%
Pressure Coefficient	N.D.
Humidity Effect	None
Expected Operation Life	2 years in air
Expected Long Term Output Drift in air	< 2 % signal loss per month after stabilization
Filter Life	6 months in container
Rec. Storage Temperature	5°C - 20°C
Warranty Period	12 months from date of dispatch

H2/C-5000 3-Electrode Electrochemical Hydrogen Gas Sensor for Safety and Process Control 0
