SPXCDDMT Gas Detector For General Industrial Fields Such As Petroleum Chemical Metallurgy

SPXCDDMT Gas Detector For General Industrial Fields Such As Petroleum Chemical Metallurgy
SPXCDDMT Gas Detector For General Industrial Fields Such As Petroleum Chemical Metallurgy SPXCDDMT Gas Detector For General Industrial Fields Such As Petroleum Chemical Metallurgy SPXCDDMT Gas Detector For General Industrial Fields Such As Petroleum Chemical Metallurgy SPXCDDMT Gas Detector For General Industrial Fields Such As Petroleum Chemical Metallurgy SPXCDDMT Gas Detector For General Industrial Fields Such As Petroleum Chemical Metallurgy

Large Image :  SPXCDDMT Gas Detector For General Industrial Fields Such As Petroleum Chemical Metallurgy

Product Details:
Place of Origin: USA
Model Number: SPXCDDMT
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard packaging
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PCS

SPXCDDMT Gas Detector For General Industrial Fields Such As Petroleum Chemical Metallurgy

Description
Supply Voltage: 16 To 32 VDC Operating Temperature: - 40° To 149°F (- 40° To 65°C)
Enclosure Rating: NEMA 4, IP 66 Inrush Current: 800 MA @ 24 VDC Maximum
Highlight:

industrial gas detector

,

petroleum gas sensor

,

chemical gas detector



                          SPXCDDMT Gas Detector For General Industrial Fields Such As Petroleum Chemical Metallurgy

  • Features:

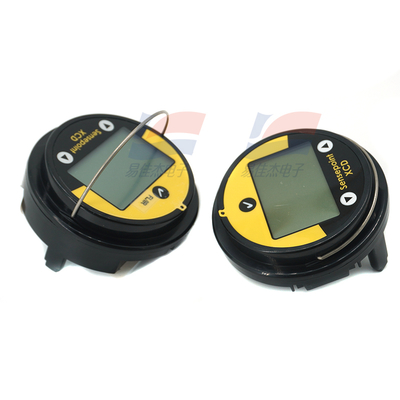

    • The clear multi - function backlit display allows users to instantly identify the operating status of XCD.
    • Output signals include industrial - standard 4 to 20 mA, three relay contacts, and Modbus digital, which can be easily connected to various control systems.
    • A magnetic wand allows non - intrusive one - person calibration, reducing maintenance costs and risks.



  • Applications:It is widely suitable for general industrial fields such as petroleum, chemical, and metallurgy, and also performs well in some harsh environments. It can be used to detect flammable gases, toxic gases, and oxygen concentration in potentially explosive atmospheres, ensuring the safety of personnel and equipment.





Supply Voltage 16 to 32 VDC @ 208.3 mA
Operating Temperature - 40° to 149°F (- 40° to 65°C)
Conduit Connection 2 x 3/4" NPT
Enclosure Rating NEMA 4, IP 66
Housing Epoxy - painted aluminum alloy LM25
Sensor Stainless steel
Mounting Integral mounting plate with 4 x mounting holes suitable for M8 bolts
Communication RS 485, Modbus RTU
Inrush Current 800 mA @ 24 VDC maximum
Output Current 4 - 20 mA sink or source
