Product Details:
|
Detection Range: | 0 - 100 Ppm | Maximum Load Concentration: | 200 Ppm |
---|---|---|---|
Output Signal: | 160 ± 40 NA/ppm | Zero Drift: | 0 - 4 Ppm |
Resolution: | 1 Ppm | Response Time: | < 90 S |
Highlight: | electrochemical ammonia sensor,three-electrode ammonia detector,ammonia concentration sensor |

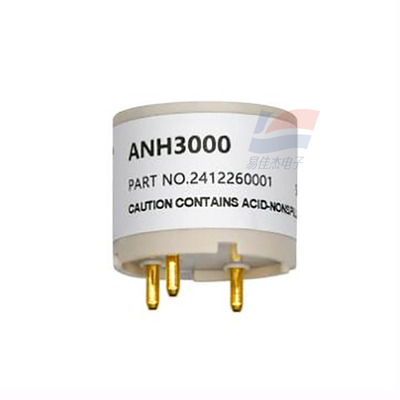

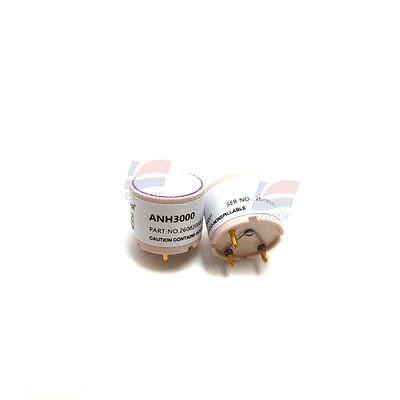

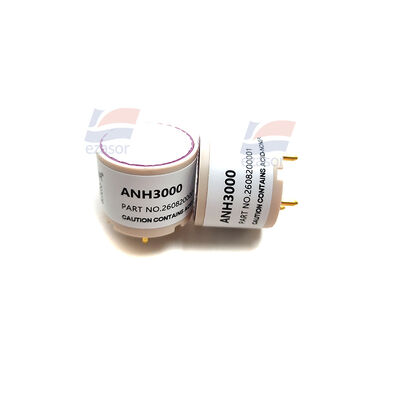

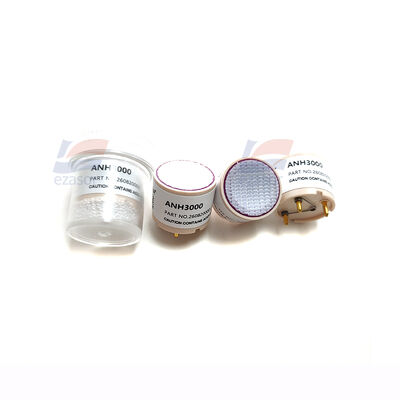

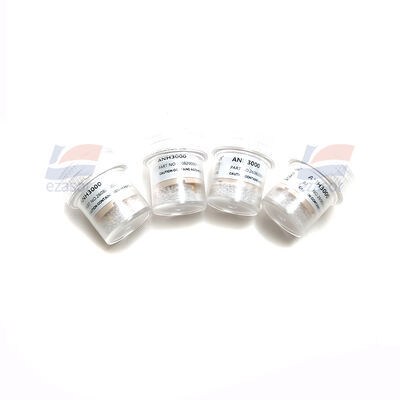

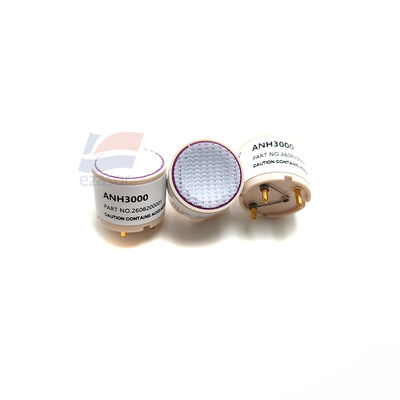

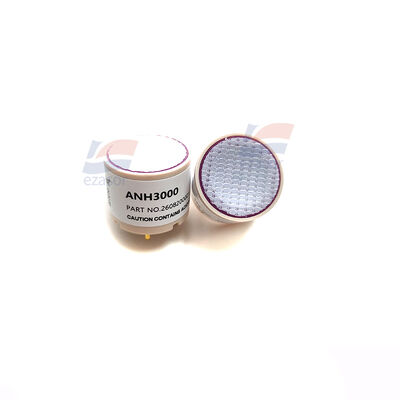

ANH3000 Three - electrode Electrochemical Ammonia Sensor For Detect Ammonia Concentration Such As Ammonia Analyzers
Product Introduction:
The ANH3000 is a three - electrode electrochemical ammonia sensor. It determines the ammonia concentration by measuring the redox current between the electrodes. This sensor features fast response and stable output signal, and can directly replace the same - type three - electrode ammonia sensors on the market, providing customers with a high - quality and low - cost ammonia detection solution.
Application Scope:
The ANH3000 ammonia sensor can be widely used in various devices that need to detect ammonia concentration, such as ammonia analyzers and ammonia alarms. It can also be applied to various ammonia - containing environments, including leakage monitoring, gas manufacturing process monitoring, waste treatment, semiconductor industry, etc.
Measurement Range | 0 - 100 ppm |
Upper Measurement Limit | 200 ppm |
Sensitivity | 40±12 nA/ppm |
Baseline (20℃) | <±10 ppm |
Response Time T90 | ≤ 90 s |
Repeatability (Tested on the Same Day) | ≤ 10% |
Long - term Output Drift | <±2%/month |
Zero Drift | <±10 ppm/year |
Expected Service Life | 24 months |
Temperature Dependence | <±15 ppm |
Resolution | < 1 ppm |
Recommended Load Resistance | 10 Ω |
Bias Voltage | 0 mV |
Housing Material | Polyphenylene Oxide (PPO) |
Weight | < 6 g |
Operating Temperature | - 30 - 50℃ |
Recommended Storage Temperature | 0 - 20℃ |
Operating Pressure | 0.9 - 1.1 bar |
