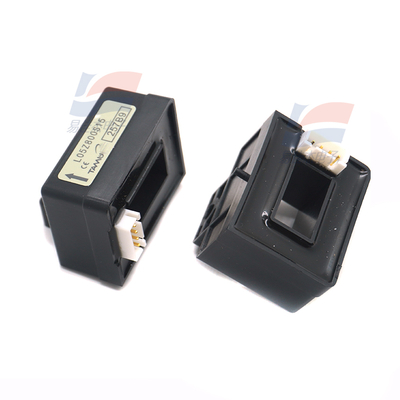

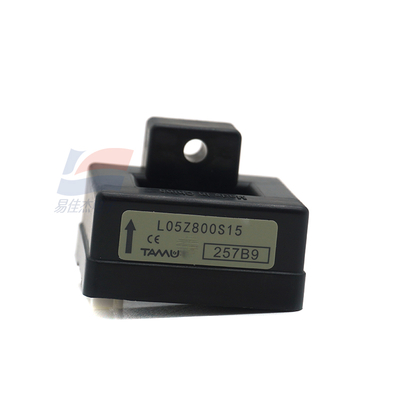

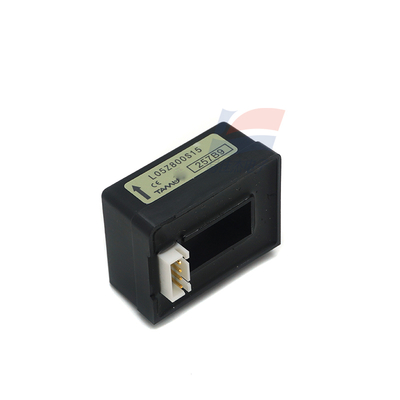

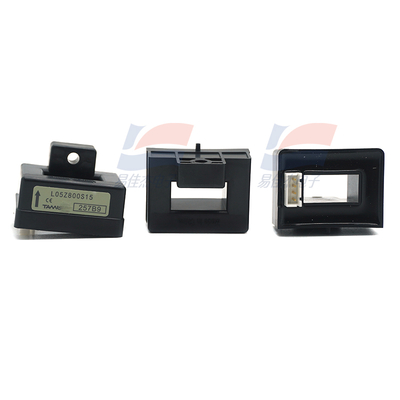

YJJ L05Z800S15 Hall Effect Current Sensor Is Used For Solar/Wind Power Inverters/Transducers

Product Description:

YJJ L05Z800S15 Hall Effect Current Sensor Is Used For Solar/Wind Power Inverters/Transducers

Features:

Characteristics of the:

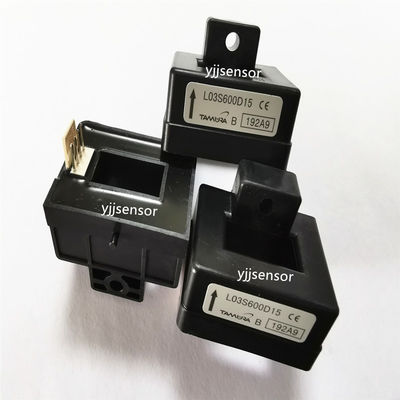

Compact, improved model of saturation current l03sxxxd15w

Standard model, main rated current;50-600 a

Wide current range (150~ saturation current 700A)

Panel installation, connection two (moshi / 22-04-1041, tin-plated terminal connector, gold-plated product terminal connector can be customized)

Aperture size: 20.5 10.5mm

General features

Open loop, voltage output type

Bipolar power supply: 15V, rated output voltage: 4V, offset voltage: 0v

Insulation voltage: ac2.5kv, 50Hz, 1min

Manufacturer: Tamura

Product Type: Industrial Current Sensor RoHS:

Current rating: 800 A

Sensor type: Open Loop

Trademark: Tamura

Core size: 20.5 mm X 10.5 mm

Height: 29.5 mm

Length: 40.5 mm

Operating temperature range: -

Package: Bulk

Product type: Industrial Current Sensors

Series: L05Z 200

Subcategory: Sensors

Type: Hall Effect Current Sensor

Width: 30.5 mm

Unit weight: 51 g

Specifications:
