AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices

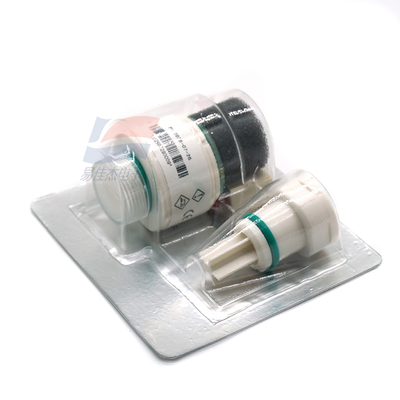

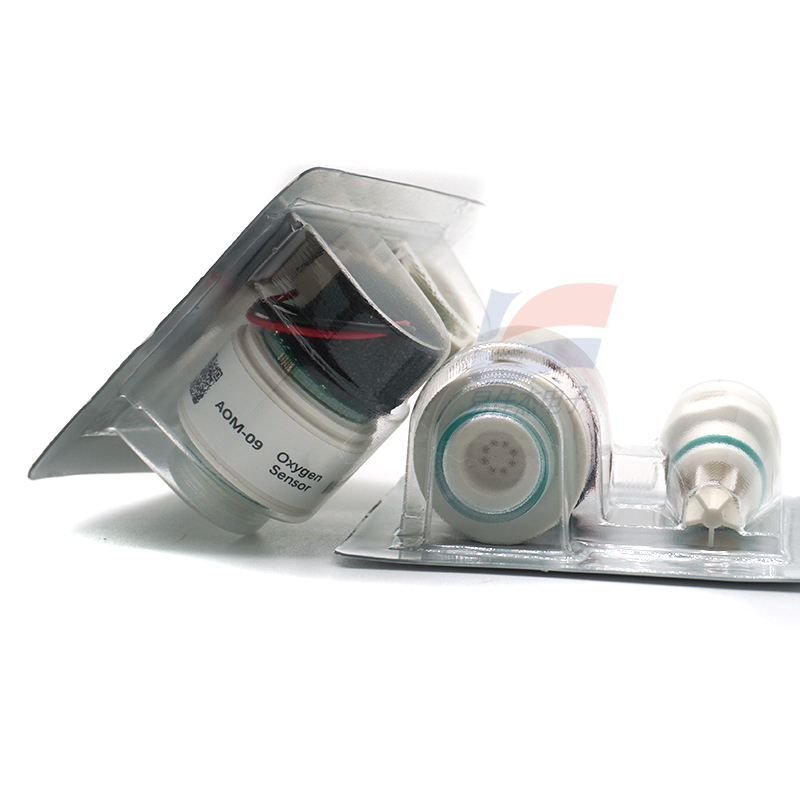

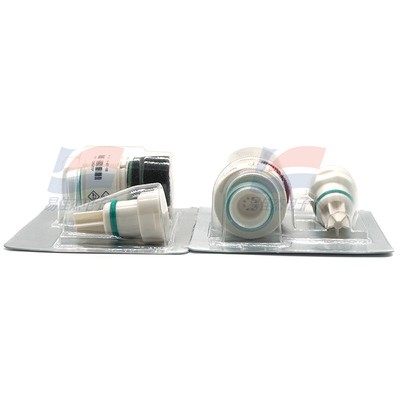

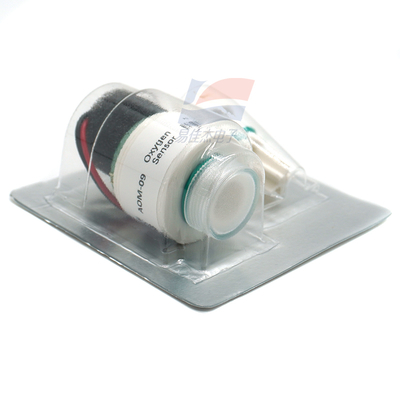

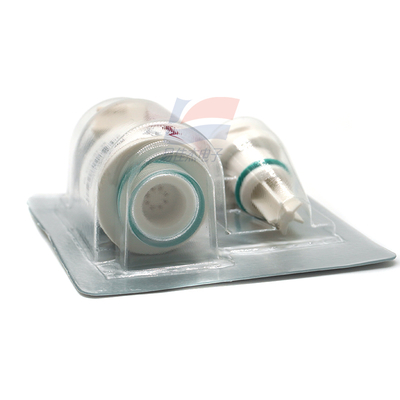

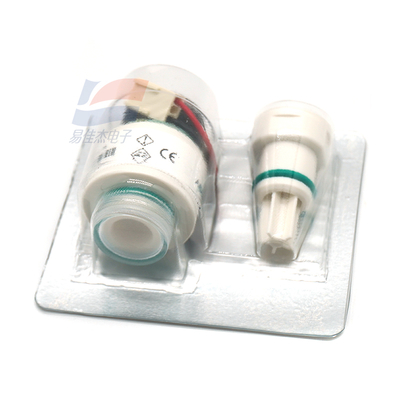

Large Image : AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices

Product Details:

Place of Origin:	CN
Model Number:	AOM-09

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices

Description

Measurement Range:	0 ~100 Vol.% O₂	Output:	9 - 13 MV In 21% O₂
Response Time:	< 15 S (T90)	Baseline Offset:	＜200 μV
External Load Resistor:	≥10 KΩ	Operating Temperature Range:	0 ℃ ~+50 ℃
Highlight:	electrochemical oxygen sensor for concentrators , oxygen concentrator control device sensor , oxygen gas sensor with warranty

AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices

Product Features:

It adopts a molded body design, with the advantages of fast response and long service life.
Meets ISO 80601 - 2 - 55 standard.
Linear output from 0% to 100%, no external power supply is required, and it has excellent signal stability.

Application Scenarios:

It can be used as the sensing component of oxygen analyzers, such as oxygen concentrator control devices, medical ventilators, anesthesia equipment, incubators, etc.

Working Principle	Partial - pressure electrochemical
Output Voltage	9 - 13 mV (in 21% O₂)
Measurement Range	0 - 100%
Response Time (T90)	< 15 s
Temperature Compensation	< 2% O₂ equivalent (0 - 40 ℃)
Load Resistance	≥ 10 kΩ
Interface	Molex 3 - pin connector (2.54 mm, with connection cable)
Housing Material	White ABS
Weight	Approximately 36 g
Operating Temperature Range	0 ℃ - +50 ℃
Operating Pressure Range	0.5 bar - 2.0 bar
Operating Humidity Range	0 - 99% RH (non - condensing)
Long - term Drift in 100% O₂ Environment	< 5% (voltage decay/year)
Service Life	1.5×10⁶ % O₂ hours (20 ℃); 0.8×10⁶ % O₂ hours (40 ℃)
Shelf Life	13 months from the date of shipment

AOM-09 Electrochemical Oxygen Sensor For Oxygen Concentrator Control Devices 0
