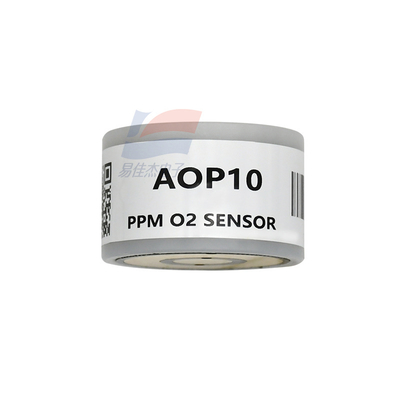

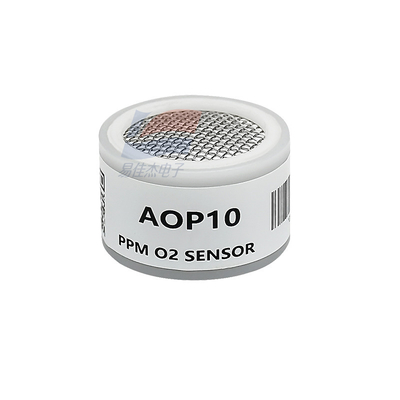

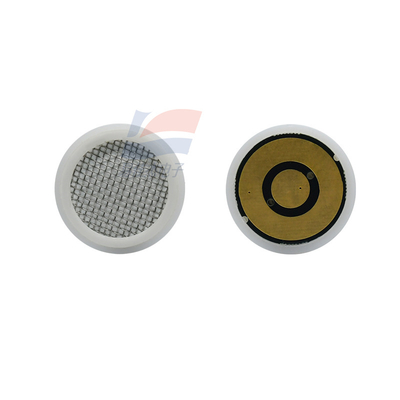

YJJ AOP10 Differential Pressure Type Electrochemical Micro-Oxygen Sensor PPM-level Analyzer Alarm Device

Product Description:

YJJ AOP10 Differential Pressure Type Electrochemical Micro-Oxygen Sensor PPM-level Analyzer Alarm Device

Features:

AOP10 PPM trace oxygen sensor is an electrochemical sensor based on the differential pressure electrochemical principle for detecting oxygen concentration. This sensor determines the oxygen concentration by measuring the output current and has the characteristics of fast response speed and good stability. It can precisely detect the trace oxygen concentration in the gas at levels as low as ppm or even ppb, meeting the requirements for high-precision measurement.

It can precisely detect the trace oxygen concentration in the gas at levels as low as PPM or even PPB.

When the AOP10 PPM trace oxygen sensor is in operation, no external power supply is required. It is commonly used in industrial process control, medical fields, gas separation, and the natural gas industry, and can be configured in instruments such as oxygen analyzers and gas alarms.

Measurement range: 0 - 10 ppm (minimum),

0 - 10,000 ppm (maximum)

Accuracy: ±2% F.S.

Response time (T90): < 7 seconds

Working pressure range: 0.8 - 1.2 bar

Working environment: 0 - 45°C,

0 - 99% RH (no condensation)

Expected lifespan: 18 - 24 months

Size: φ32 * 20mm

Specifications:
