YJJ AHS3000 Electrochemical Hydrogen Sulfide Sensor Is Used For Detecting Concentration Of Hydrogen Sulfide Gas

Product Description:

YJJ AHS3000 Electrochemical Hydrogen Sulfide Sensor Is Used For Detecting Concentration Of Hydrogen Sulfide Gas

Features:

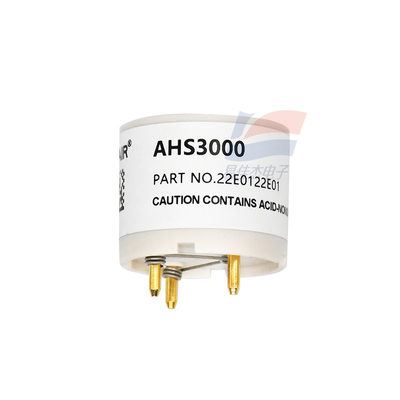

AHS3000 Hydrogen Sulfide Sensor

Compact and highly sensitive

The AHS3000 is a potentiometric electrolytic hydrogen sulfide sensor. It determines the hydrogen sulfide concentration by measuring the redox current between the electrodes. This sensor features a small size, high sensitivity, rapid response, and stable output signal. It can be integrated into portable instruments and can directly replace the similar three-electrode hydrogen sulfide sensors on the market, providing customers with high-quality and cost-effective hydrogen sulfide detection solutions. Case.

The AHS3000 has a wide range of applications and is suitable for hydrogen sulfide detection in industrial settings, environmental protection fields, portable hydrogen sulfide detection instruments, and fixed-point hydrogen sulfide detectors, etc.

Measurement range: 0 - 100 ppm

Repeatability: ≤ 3%

Sensitivity: 700 ± 150 nA/ppm

Response time (T90): ≤ 30s

Working pressure range: 0.9 - 1.1 bar

Working environment: -20 - 40°C (continuous), 15 - 90%RH (no condensation)

Size: 20.2 * 21mm
