M-11 Electrochemical Oxygen Gas Sensor For Medical Equipment Anesthesia Machine

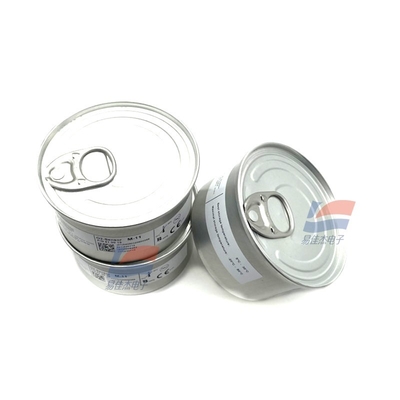

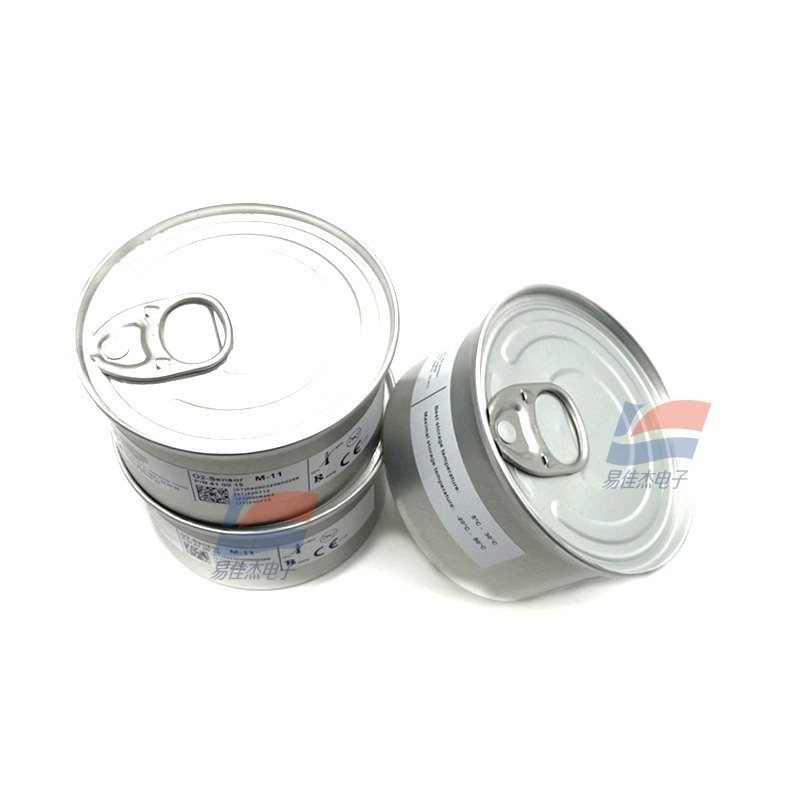

Large Image : M-11 Electrochemical Oxygen Gas Sensor For Medical Equipment Anesthesia Machine

Product Details:

Model Number:	M-11 M11

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

M-11 Electrochemical Oxygen Gas Sensor For Medical Equipment Anesthesia Machine

Description

Working Life:	3 - 4 Years	Signal Output:	0.8 - 12.5mV Or 8.0 - 12.5mV
Load Resistance:	>1MΩ Or >10KΩ	Resolution:	0.1%
Working Temperature:	0℃ - 50℃ Or 10℃ - 40℃	Response Time (T90):	< 5s Or < 17s
Highlight:	electrochemical oxygen gas sensor , medical equipment oxygen sensor , anesthesia machine gas sensor

M-11 Electrochemical Oxygen Gas Sensor For Medical Equipment Anesthesia Machine

Product Features:

It can be compatible with various imported brands of anesthetic breathing equipment.
The sensor output is temperature - compensated, with a fast response time, stable zero - point, high reliability, long service life and good linearity.
The sensor design meets the requirements of modern medical first - aid and other high - safety standards.

Product Uses:

The M-11 gas sensor is widely used in incubators, ventilators, and oxygen monitors. It is mainly used to monitor the inhaled oxygen concentration in anesthetic breathing equipment, and can be compatible with various imported brands of anesthetic breathing equipment.

Measurement Range	0 - 99% or 0 - 100%
Working Life	3 - 4 years
Signal Output	0.8 - 12.5mV or 8.0 - 12.5mV, etc.
Load Resistance	>1MΩ or >10KΩ
Resolution	0.1%
Working Temperature	0℃ - 50℃ or 10℃ - 40℃
Working Pressure	650 - 1250mbar or 700 - 1250hPa
Response Time (T90)	< 5s or < 17s, etc.
Signal Attenuation	< 0.3%/month or < 1%/month
Humidity Range	-0.03%/1%RH
Power Supply Voltage	5 - 12V DC
Temperature Compensation	Yes

M-11 Electrochemical Oxygen Gas Sensor For Medical Equipment Anesthesia Machine 0
