YJJ ACD1200 NDIR Principle Carbon Dioxide Infrared Sensor Module - High Precision CO2 Concentration Detection

Product Description:

YJJ ACD1200 NDIR Principle Carbon Dioxide Infrared Sensor Module - High Precision CO2 Concentration Detection

Features:

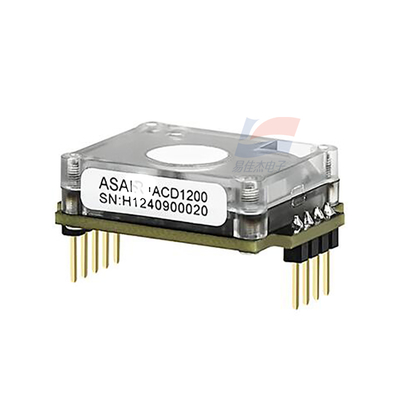

ACD1200 Infrared Carbon Dioxide Sensor

It responds quickly, has a short recovery time, and has strong anti-interference ability.

The ACD1200 uses the non-dispersive infrared (NDIR) principle to detect the concentration of carbon dioxide in the air. The ACD1200 has excellent selectivity, no oxygen dependence, and a long lifespan; it also has a digital interface output, making it convenient to use. The ACD1200 is a high-performance sensor that integrates infrared absorption gas detection technology, precise optical path, and high-precision signal detection circuit.

The ACD1200 has a wide range of applications and is suitable for use in air quality monitoring equipment, fresh air systems, air purification equipment, HVAC and refrigeration equipment, etc.

Infrared carbon dioxide sensor APM10/APM2000

Laser particulate sensor

Power supply: 4.75 - 5.25V

Measurement range: 0 - 1000 μg/m3

Measurement particle size: 0.3 - 10 μm

Accuracy: ±15 μg/m3 (0 - 100 μg/m3)

±15% of reading (100 - 1000 μg/m3)

Sampling period: 1s

Operating environment: -10 - 50℃

Dimensions: 49.2 * 31.6 * 10.7mm

Power supply: 4.75 - 5.25V

Measurement range: 400 - 5000 ppm

Accuracy: ±(50 ppm + 5% RD)

Sampling period: 2s

Operating environment: 0 - 50℃, 0 - 95% RH (no condensation)

Output mode: I2C/UART

Dimensions: 22 * 33 * 14.5mm

Specifications:
