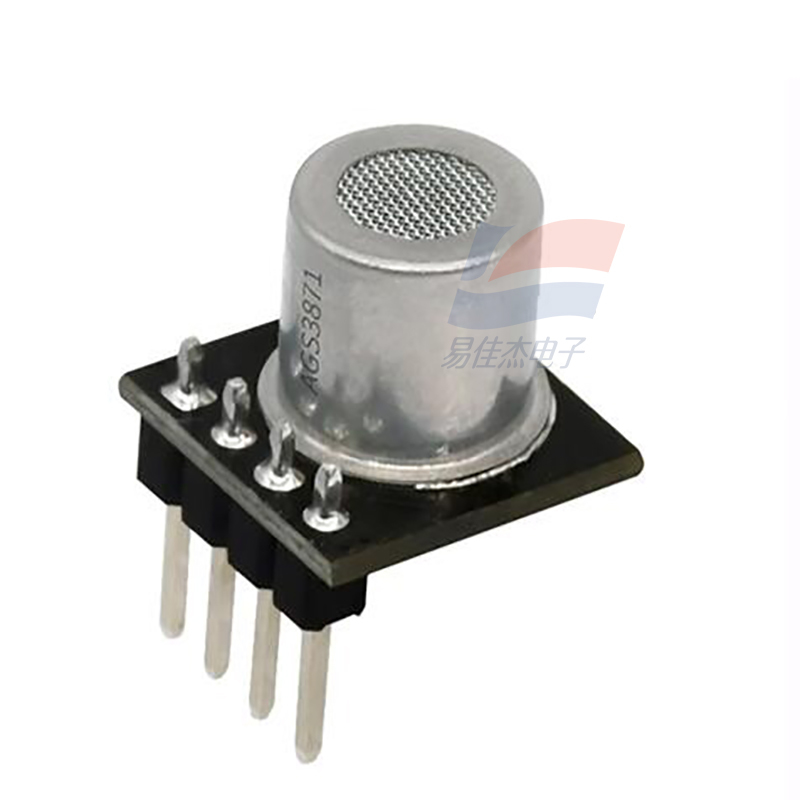

YJJ AGS3871 Carbon Monoxide Sensor Module Combustible Gas CO Detection Sensor

Product Description:

YJJ AGS3871 Carbon Monoxide Sensor Module Combustible Gas CO Detection Sensor

Features:

AGS3871 Carbon Monoxide Sensor

Low cost, simple driver circuit

The carbon monoxide sensor (hereinafter referred to as the sensor) is equipped with a high-performance semiconductor silicon-based resistive sensing core chip. It uses dedicated digital module acquisition technology and gas sensing sensing technology to ensure that the product has extremely high reliability and excellent long-term stability. It features low power consumption, high sensitivity, low cost, and simple driver circuit. The sensor has undergone complete calibration and testing before leaving the factory to meet the large-scale application requirements of customers.

The sensor is used for detecting the leakage of carbon monoxide gas in household and industrial equipment.

Power supply method: 4.75 - 5.25V DC

Measurement range: 50 - 1000 ppm 1~25%LEL

Accuracy: ±(50ppm + 40% RD) ±(1%LEL+40%RD)

Sampling period: ≥ 2 seconds

Output mode: I2C

Size: 12*12*16.4mm

Specifications:
