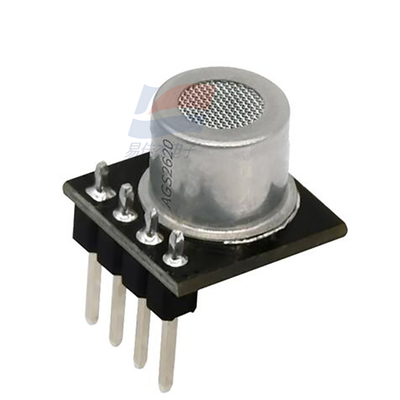

YJJ AGS2620 50-5000PPM TVOC Gas Concentration Detection Sensor Module IIC Digital Signal Sensor Module

Product Description:

YJJ AGS2620 50-5000PPM TVOC Gas Concentration Detection Sensor Module IIC Digital Signal Sensor Module

Features:

AGS2620 TVOC Sensor

Low cost, simple driving circuit

The TVOC sensor (hereinafter referred to as the sensor) is equipped with a high-performance semiconductor silicon-based resistive sensing chip.

It adopts dedicated digital module acquisition technology and gas sensing sensing technology to ensure that the product has extremely high reliability and outstanding long-term stability. It features low power consumption, high sensitivity, low cost, and a simple driving circuit. The sensor has undergone complete calibration and testing before leaving the factory to meet the large-scale application requirements of customers.

The sensor is used for detecting the concentrations of various TVOC gases.

Power supply method: 4.75 - 5.25V DC

Measurement range: 0 - 30ppm 50~5000ppm

Accuracy: ±(1ppm + 40% RD) ±(50ppm+40%RD)

Sampling period: ≥ 2 seconds

Output mode: I2C

Size: 12*12*11 mm

Specifications:
