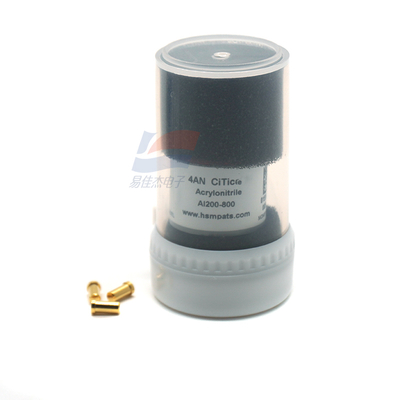

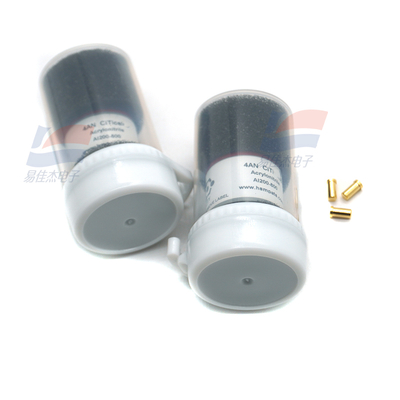

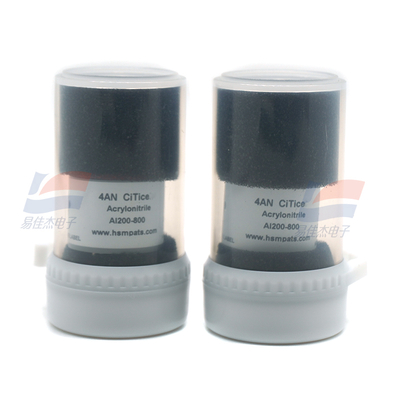

YJJ 4AN Acrylonitrile (C3H3N) Gas Sensor Part Number: AI200-800

Product Description:

YJJ 4AN Acrylonitrile (C3H3N) Gas Sensor Part Number: AI200-800

Features:

purpose of this document is to present the performance specification of the 4AN CiTiceL.

This document should be used in conjunction with Operating Principles (OP09) and the Product Safety Datasheet (PSDS 2).

The data provided in this document are valid at 20°C, 50% RH and 1013 mBar for 3 months from the date of sensor manufacture. For guidance on sensor performance outside of these limits, please refer to the Operating Principles.

Output signal can drift below the lower limit over time. For guidance on the safe use of the sensor, please refer to the Operating Principles.

Operating Principle:3-electrode electrochemical

Measurement Range:0 ppm to 80 ppm C3H3N

Filter:None

Sensitivity:250 nA/ppm ±100 nA/ppm

Response Time (T90):<120 seconds at 20°C

Baseline Offset:(clean air):-0.5 ppm to +1 ppm acrylonitrile equiv.

ELECTRICAL

Recommended Load Resistor:10 Ω

Bias Voltage:300 mV

MECHANICAL

Housing Material

(Cap and Body):ABS

Weight:5 g

Orientation:Any

ENVIRONMENTAL

Operating Temperature Range:-20°C to +50°C

Recommended Storage Temperature:0°C to 20°C

Operating Pressure Range:Atmospheric ±10 %

Operating Humidity Range:15% to 90% RH

LIFETIME

Expected Operating Life:Two years in air

Storage Life:6 months in CTL container

Standard Warranty:12 months
