ACM3000 Carbon Monoxide Gas Sensor Three Electrode Electrochemical Low Power Consumption

Large Image : ACM3000 Carbon Monoxide Gas Sensor Three Electrode Electrochemical Low Power Consumption

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	ACM3000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Month

Contact Now

ACM3000 Carbon Monoxide Gas Sensor Three Electrode Electrochemical Low Power Consumption

Description

Measurement Range:

0~1000 Ppm

Maximum Overload:

2000 Ppm

Sensitivity:

70±15 NA/ppm

Response Time T90:

≤15 S (0 To 500 Ppm)

Highlight:

carbon monoxide gas sensor

low power electrochemical sensor

three electrode CO sensor

ACM3000 Carbon Monoxide Gas Sensor Three Electrode Electrochemical Low Power Consumption

Summary

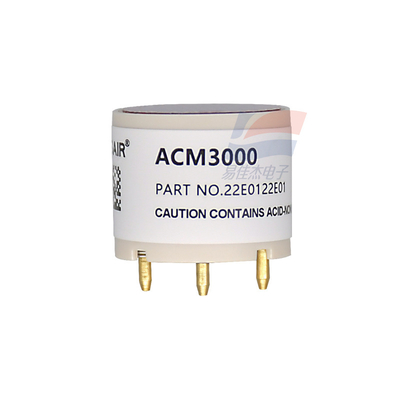

ACM3000 is a three-electrode electrochemical carbon monoxide sensor, carbon monoxide
concentration is reflected by measuring redox current between electrodes. It has features of fastresponse and stable output. Similar three-electrode carbon monoxide sensors in the market can be
replaced by this sensor directly

Carbon monoxide gas sensor
* Stable output
* Fast response
* Low power consumption
* High linearity

Application
ACM3000 sensor carbon monoxide sensor can be applied to devices and scenarios that need
to measure carbon monoxide concentration. For example, it can be used in carbon monoxide
analyzer, carbon monoxide alarm, carbon monoxide fire alarm in equipment, such as inadequate
combustion of gas water heater, range hood, automobile emission detection in underground parking,
home and business air cleaning equipment, industrial environment detection.

Specification:

Baseline Offset	±2 ppm
Repeatability	≤3%
Output drift	<2%/month
Operating life	2 years in normal use
Storage life	6 months in original packaging

ACM3000 Carbon Monoxide Gas Sensor Three Electrode Electrochemical Low Power Consumption 0
