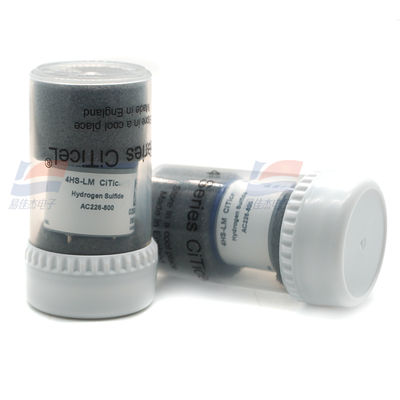

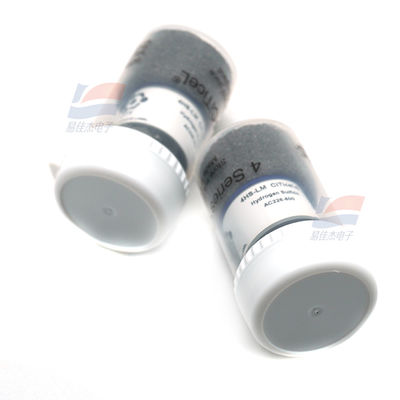

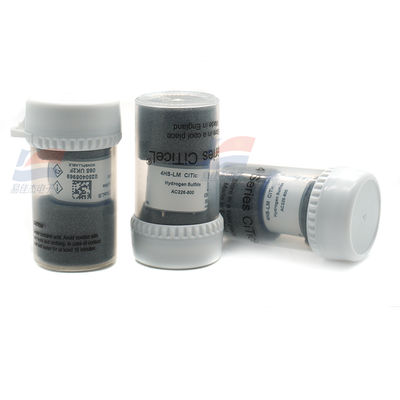

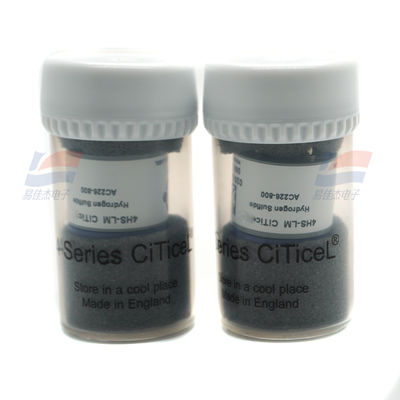

YJJ 4HS-LM AC226-800 0-100 ppm Electrochemical H2S Gas Sensor for H2S Concentration Detection

Product Description:

YJJ 4HS/LM AC226-800 0-100 ppm Electrochemical Hydrogen Sulfide Gas Sensor Is Used For H2S Concentration Detection

Features:

Performance Characteristics

Nominal Range:0-100 ppm

Maximum Overload:500 ppm

Expected Operating Life:Two years in air

Output Signal:0.70 ± 0.15 μA/ppm

Resolution:0.1 ppm

Temperature Range:-40°C to +50°C

Pressure Range:Atmospheric ± 10%

Pressure Coeffi cient:No data

T90 Response Time:≤30 seconds

Relative Humidity Range:15 to 90% non-condensing

Typical Baseline Range:-0.1 to +0.4 ppm equivalent

Maximum Zero Shift:<0.2 ppm quivalent

Long Term Output Drift:<0.2 ppm equivalent

Recommended Load:<0.2 ppm equivalent

Resistor:

Bias Voltage:Not required

Repeatability:<2% of signal

Output Linearity:Linear

Weight:5 g (approx.)

Position Sensitivity:None

Storage Life:Recommended Storage

Temperature:Warranty Period

Six months in CTL container:0-20°C

12 months from date of

despatch
