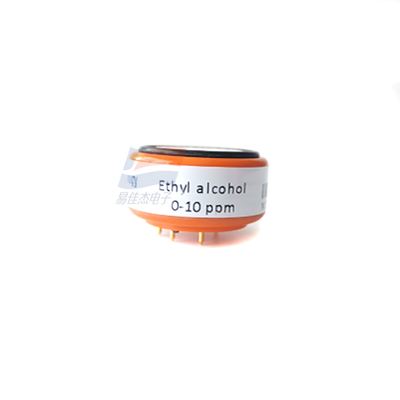

YJJ MST 7C2H5OH-10 7 Series Electrochemical Ethanol Sensor Is Used In Gas leakage Alarm Devices

Product Description:

YJJ MST 7C2H5OH-10 7 Series Electrochemical Ethanol Sensor Is Used In Gas leakage Alarm Devices

Features:

Reproducibility: 1% output signal

Operating temperature range: Linear, regression coefficient R = 0.999

Operating humidity range: 20°C to 50°C

Operating pressure range: 15% to 90% 6MH (no condensation)

Pressure coefficient: Atmospheric pressure ± 10%

Baseline range: < 0.02% signal/mBar

Long-term drift: < ±0.4 mA

Offset voltage: +300 mV (Note: Sensors with added offset voltage must be waited for after insertion into the instrument)

Load resistance: 10 ohms

Built-in filter: None

Life expectancy: 2 years (in air)

Shelf life: 1 year (from the date of shipment)

Output current polarity: Positive current (for defining the output current of carbon monoxide and hydrogen sulfide sensors)

Anti-interference characteristics:

Note: Calibration and testing must be conducted using the target gas (the gas to be measured) to ensure the accuracy of the detection and alarm equipment. The purpose of providing anti-interference data is to understand the cross-response characteristics of the sensor to certain other gases, rather than providing alternative gases for calibration: The response characteristics of cross-interference gases are not guaranteed to be linear, and there will be significant cross-gas sensitivity variations between sensor batches. Therefore, if cross-gas is used for calibration, the malt sensor cannot guarantee the accuracy of the detection and alarm equipment.

Specifications:
