Product Description:

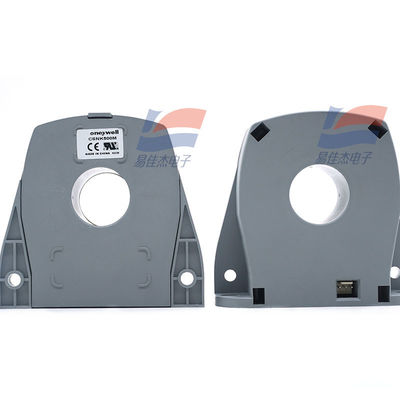

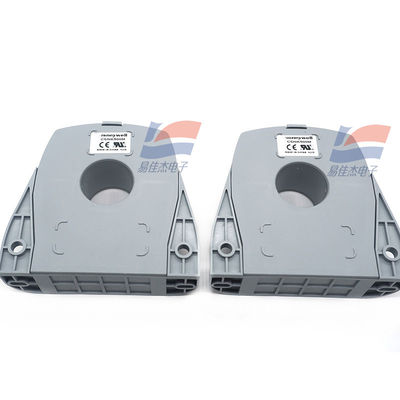

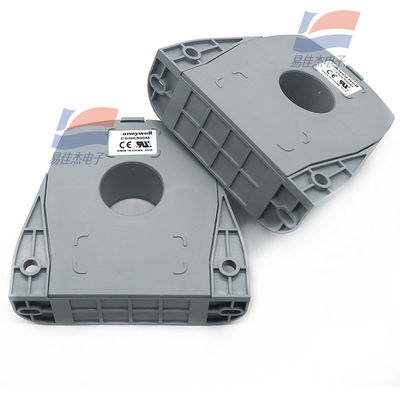

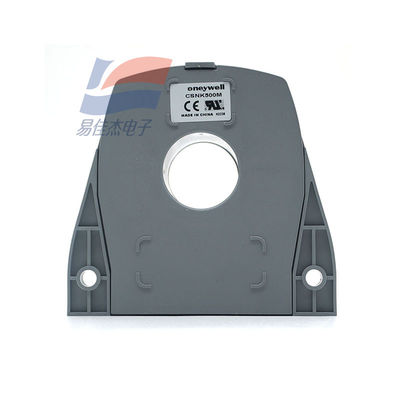

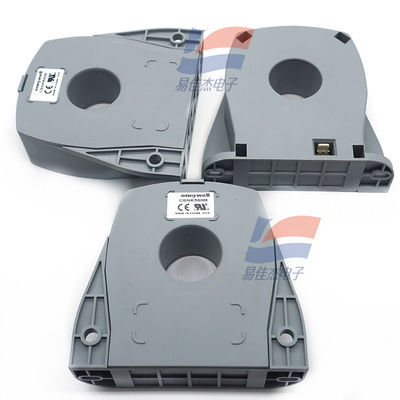

YJJ CSNK500M 500A. T rms Hall Current Sensor Is Used In Instrumentation Field
Features:
CSNK500M closed-loop current sensor is measured based on magnetoresistance effect or hall effect, and zero balance or zero magnetic flux method.The magnetic flux in the sensor core will always be controlled at zero.The flux required to balance the zero flux is equal to the primary flux through the conductor multiplied by the ratio of primary to secondary turns.The output of the closed-loop current sensor is at any time equal to the primary current divided by the number of secondary coils.This current can be expressed as a voltage across a resistance.
Product characteristics
Current sensing up to 1275 A (depending on the product list)
Measure ac, dc and pulse currents
Very competitive cost performance
A quick response
High overload capacity
Excellent electrical isolation between primary and secondary circuits
Industrial operating temperature range
Small and light
Product potential typical applications
Variable speed drive
Over current protection
Earth fault detector
Circuit feedback control system
The robot
UPS and telecom power
Welding power source
Automotive - battery management system
Power meter
Product performance parameters
Output type current
Continuous current 1000 A
The working current of 25 ° C, 500 A RMS
Power supply current 20 mA + output
Power supply voltage 15.0 Vdc to 18.0 Vdc
Bias current < 0.2ma
Bias current drift < 0.3ma
The coil resistance is 50 Ohm
Response time < 1 s
Coil turns 5000
The nominal output is 100 mA
Working temperature to 40 ° C to 85 ° C [to 40 ° F to 185 ° F]
Storage temperature and 40 ° C to 90 ° C [to 40 ° F to 194 ° F]
The minimum resistance is 0 Ohm and the maximum resistance is 75 Ohm
Case material glass filled PBT (ul94-v0)
The base panel
Outlet type Molex (three channels)
Accuracy of + / - 0.5%
Specifications:
| Measurement range |
0 to ±1200A |
| Continuous current |
0 to ±1275A |
| Accuracy |
Better than ±0.50% at 25℃ |
| Power supply voltage |
±15 to 18VDC (±5%) |
