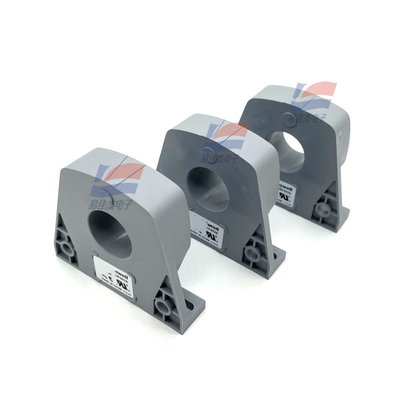

YJJ CSNS100M-002S Type Current Sensor With A Rated Current Of 100 Amperes Is Used In Industrial Automation

Product Description:

YJJ CSNS100M-002S Type Current Sensor With A Rated Current of 100 Amperes Is Used in Industrial Automation

Features:

CSN series closed-loop current sensors are measured based on magnetoresistance or hall effect, and zero equilibrium or zero flux methods.The magnetic flux in the sensor core will always be controlled at zero.The flux required to balance the zero flux is equal to the primary flux through the conductor multiplied by the ratio of primary to secondary turns.The output of the closed-loop current sensor is at any time equal to the primary current divided by the number of secondary coils.This current can be expressed as a voltage across a resistance.

Product characteristics

Current sensing up to 1275 A (depending on the product list)

Measure ac, dc and pulse currents

Very competitive cost performance

A quick response

High overload capacity

Excellent electrical isolation between primary and secondary circuits

Industrial operating temperature range

Small and light

Potential applications

Variable speed drive

Over current protection

Earth fault detector

Circuit feedback control system

The robot

UPS and telecom power

Welding power source

Automotive - battery management system

Power meter

Specifications:
