DS4-TVOC TVOC Gas Sensors Smart Digital Gas Sensor Solid Polymer Electrochemical

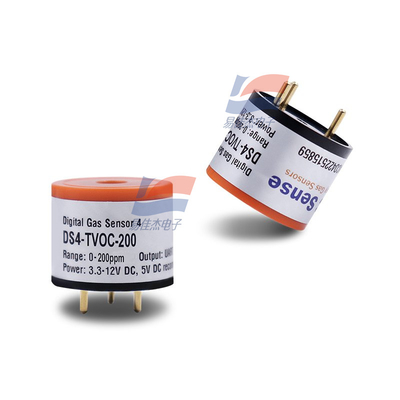

Large Image : DS4-TVOC TVOC Gas Sensors Smart Digital Gas Sensor Solid Polymer Electrochemical

Product Details:

Place of Origin:	Germany
Brand Name:	EC
Model Number:	DS4-TVOC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Month

Contact Now

DS4-TVOC TVOC Gas Sensors Smart Digital Gas Sensor Solid Polymer Electrochemical

Description

Accuracy:

± 5% F.S

Repeatability:

< 2%

Linearity:

Linear

Warm-Up Time:

< 60S

Highlight:

DS4-TVOC TVOC gas sensor

solid polymer electrochemical sensor

smart digital gas detector

DS4-TVOC TVOC Gas Sensors Smart Digital Gas Sensor Solid Polymer Electrochemical

Feature:

*Low power consumption, wide range power supply from 3.3 to
*12V DC (5V recommended).
*Wide operating temperature range from -40 ℃ to +55 ℃, without temperature compensation.
*Long-term zero point stability.
*Fast response time and timely detection of gas concentration
changes.
*Excellent linearity.
*Anti-poisoning and long lifetime.
*Solidification design of the electrolyte, avoiding the risk of liquid leakage caused by high humidity environments or material aging.

Specification:

Long-Term Drift	< 1 %/month
Expected Lifetime	> 3 years
Warranty	12 months from the date of shipment
Output Signal UART	3.3V half-duplex
Baud rate	9600, Data bit: 8 bits ,Stop bit: 1 bit
Supply Voltage	3.3 to 12V DC, Recommended 5V DC
Supply Current	0.65 mA @ 5V DC
Peak Current	1 mA @ 5V DC
Sleep Mode Current	0.35 mA @ 5V DC
Power Consumption	≤ 5 mW @ 5V DC

DS4-TVOC TVOC Gas Sensors Smart Digital Gas Sensor Solid Polymer Electrochemical 0
