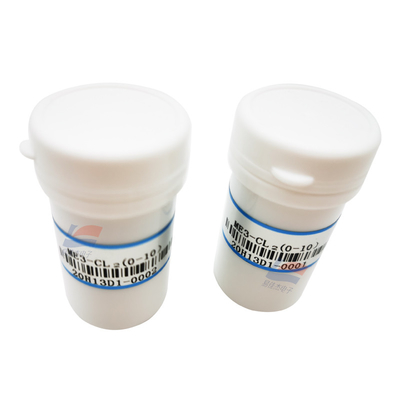

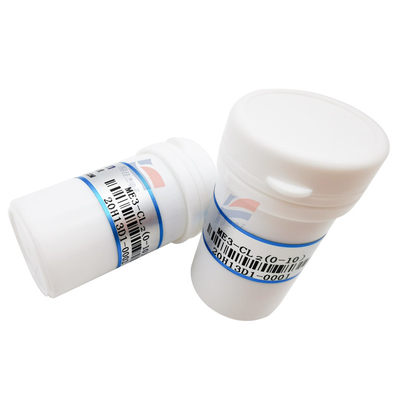

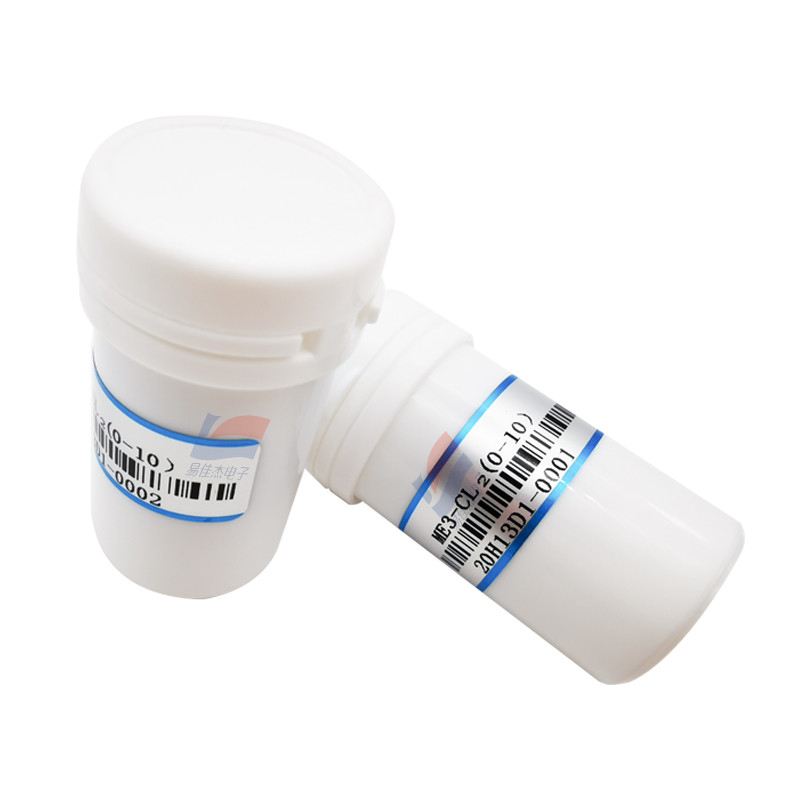

YJJ ME4-CL2 Electrochemical Chlorine Gas Sensor For Environmental Detection

Product Description:

YJJ ME4-Cl2 Electrochemical Chlorine Gas Sensor For Environmental Detection

Features:

Product details

The m 4- c 2 sensor is a constant potential electrolytic c 2 sensor.CL2 and O2 have a corresponding reduction oxidation reaction on the working electrode and the opposite electrode and release the corresponding charge to form a current. The current is proportional to the concentration of the gas and follows Faraday's law. The concentration of CL2 can be determined by testing the current.

Sensor characteristics

Low power consumption, high accuracy, high sensitivity, wide - range, strong anti-interference ability, excellent repeatability and stability.

The main application

Widely suitable for chemical industry, medicine and environmental protection in the detection of chlorine gas.

Technical indicators

Project parameters

Detection of chlorine gas (Cl2)

The range 0 to 20

The maximum measurement limit is 250ppm

Sensitivity 1±0.25 uA/ PPM

Resolution of 0.1 parts per million

Response time (T90) ≤60s

Bias 0 mv

10 Ω load resistance (recommended)

Repeatability < 2 hardness output value

Stability (/ month) < 2

The output -ity is -

Zero drift (-20℃-40℃) ≤0.2 PPM

Temperature range -20℃-50℃

Humidity range of 15 - hardness -90 RH no condensation

Pressure range standard atmospheric pressure ±10 ‰

Test life 2 years

Note: product parameters are subject to change without prior notice
