YJJ MP-3B 2.5V Low Voltage Low Power Consumption High Sensitivity And Fast Corresponding Gas Sensor

Product Description:

YJJ MP-3B 2.5V Low Voltage Low Power Consumption High Sensitivity And Fast Corresponding Gas Sensor

Features:

Alcohol gas sensor MP-3B product description

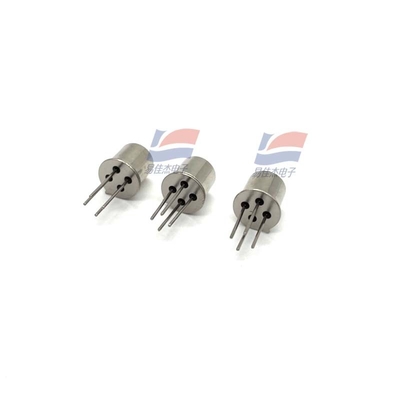

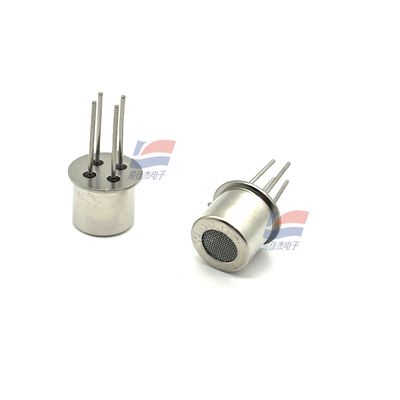

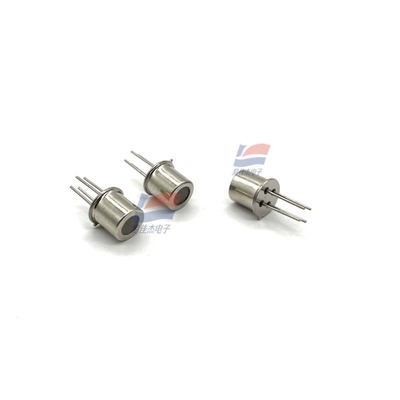

MP-3B semiconductor gas sensitive element for alcohol detection adopts advanced plane production technology. The heater and metal oxide semiconductor gas sensitive material are formed on micro Al2O3 ceramic substrate, which are led out by electrode and packaged in metal tube base and tube cap. When there is a detected gas, the higher the concentration of the gas in the air, the higher the conductivity of the sensor. This change in conductivity can be converted into an output signal corresponding to the gas concentration using a simple circuit.

Alcohol gas sensor MP-3B sensor features

All solid state semiconductor alcohol sensor

2.5V Low voltage, low power consumption

High sensitivity and fast response recovery characteristics

Excellent selectivity

Simple driver circuit

Excellent stability and long service life

Alcohol gas sensor MP-3B main applications

Used for motor vehicle drivers and other risk workers drunk supervision and other places ethanol vapor detection.

Alcohol gas sensor MP-3B technical specifications

Product model :MP-3B

The product type

Planar semiconductor gas sensing element

Standard packaging

metal

Detection of gas

alcohol

Detection of concentration

0.04 4 mg/L alcohol

Standard circuit condition

Circuit voltage Vc

24 v DC or less

The heating voltage VH

2.5 V + / - 0.1 V ACorDC

Load resistance RL

adjustable

Characteristics of gas sensitive elements under standard test conditions

Heat resistance RH

20Ω±3Ω (room temperature)

The power consumption of the heating PH

350 mw or less

Surface resistance of sensitive body Rs

5KΩ-50KΩ(in 0.4mg/L alcohol)

The sensitivity S

Rs(in air)/Rs(0.4mg/L alcohol)≥5

The concentration gradient

Alpha.

0.6 or less (R1.5 / R0.4 alcohol mg/L)

Standard test conditions

Temperature and Humidity

20 ℃ plus or minus 2 ℃; 65% + / - 5% RH

Standard test circuit

Vc: 2.5 V + / - 0.1 V.

The VH: 2.5 V + / - 0.1 V

Warm up time

No less than 48 hours
