ZP01-MP503 Air-Quality Detection Module For Air cleaner Fresh-air System Intelligent Integrated Ceiling

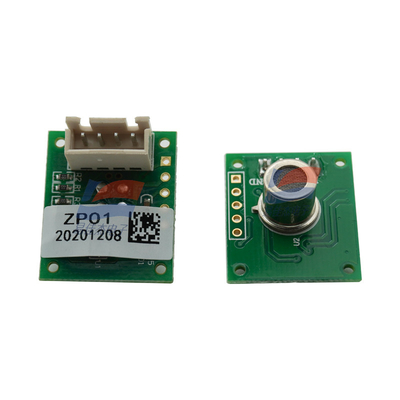

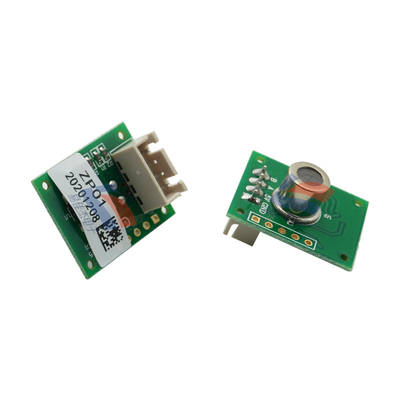

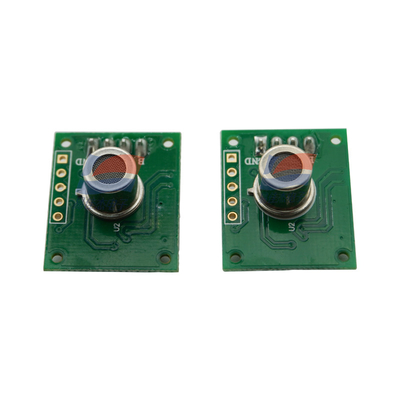

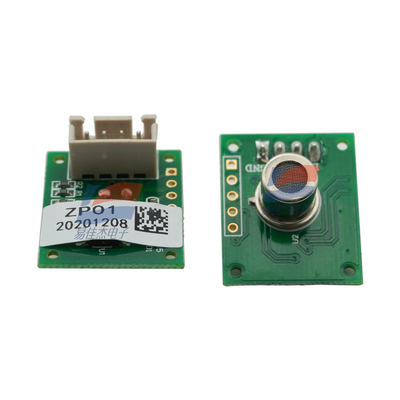

Large Image : ZP01-MP503 Air-Quality Detection Module For Air cleaner Fresh-air System Intelligent Integrated Ceiling

Product Details:

Place of Origin:	CN
Model Number:	ZP01-MP503

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

ZP01-MP503 Air-Quality Detection Module For Air cleaner Fresh-air System Intelligent Integrated Ceiling

Description

Sensor:	Air Quality Sensor	Output Data:	0~3 Grade Pollution Signal
Working Voltage:	5.0±0.2V DC	Working Current:	≤60mA
Warm Up Time:	≤3 Min	Response Time:	≤20s
Highlight:	air quality detection module , air cleaner gas sensor , intelligent ceiling air sensor

ZP01-MP503 Air-Quality Detection Module For Air cleaner Fresh-air System Intelligent Integrated Ceiling

Description:

ZP01-MP503 air-quality module adopts flat surface semiconductor gas sensor. The module has very high sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke of cigarette, essence &etc. The module has been aging, debugged, adjusted and calibrated. So it has good consistency and high sensitivity.

Application:

Air cleaner, fresh-air system, intelligent integrated ceiling, air quality monitor, ventilator, air-condition.

Features:

High sensitivity and good long-term stability
Calibrated before shipment
10 seconds to 3 minutes with auto-preheating function
Faulty auto-check, low power consumption
Long lifespan, high cost-effective

Parameter	Value
Product Model	ZP01 - MP503
Sensor Type	Flat - surface Semiconductor Gas Sensor
Target Gas	Formaldehyde, Benzene, Carbon Monoxide, Hydrogen, Alcohol, Ammonia, Cigarette Smoke, Essence, etc.
Physical Interface	XH2.54 - 4P Terminal Socket
Output Data	0 - 3 Grade Pollution Signal
Output Data Type	TTL Level Signal (with 200Ω Protective Resistance Inside)
Working Voltage	5.0±0.2V DC (No Voltage Reverse - connection Protection)
Working Current	≤60mA
Pre - heating Time	≤3 Minutes
Response Time	≤20 Seconds
Recovery Time	≤60 Seconds
Working Temperature	0 - 50℃
Working Humidity	≤95%RH
Storage Temperature	- 20 - 60℃
Storage Humidity	≤60%RH
Dimensions	24×20×16mm (L×W×H)
Weight	≤20g
Sensitivity Attenuation	≤1%/Year

ZP01-MP503 Air-Quality Detection Module For Air cleaner Fresh-air System Intelligent Integrated Ceiling 0
