YJJ CO-AX Electrochemical Carbon Monoxide Sensor Resistant To H2 For Gas Detection

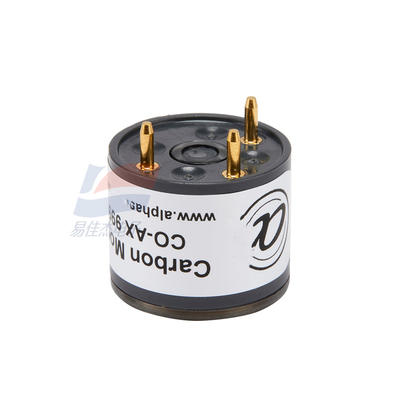

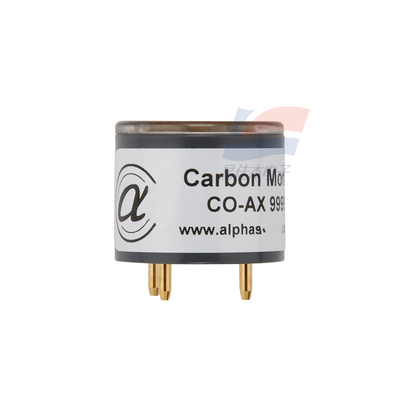

Large Image : YJJ CO-AX Electrochemical Carbon Monoxide Sensor Resistant To H2 For Gas Detection

Product Details:

Place of Origin:	Britain
Brand Name:	YJJ
Model Number:	CO-AX

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Palletized
Delivery Time:	5-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2200

Contact Now

YJJ CO-AX Electrochemical Carbon Monoxide Sensor Resistant To H2 For Gas Detection

Description

Measurement Range:	0 - 2000 Ppm	Sensitivity:	55 - 90 NA/ppm
Response Time:	< 30 Seconds	Linear Range:	±40 Ppm
Overload Protection:	4000 Ppm	Resolution:	0.5 Ppm
Size:	20.2 × 16.5 Mm	Service Life:	2 Years
Highlight:	electrochemical carbon monoxide sensor , CO gas sensor resistant to H2 , gas detection sensor with warranty

Product Description:

YJJ CO-AX Electrochemical Carbon Monoxide Sensor Resistant To H2 For Gas Detection

Features:

Carbon Monoxide Sensor - AX Main Characteristics

Measurement Range: 2000 ppm

Sensitivity: 55 - 90 nA/ppm

Response Time: < 30 seconds

Linear Range: < +/- 40 ppm

Overload: 4000 ppm

Resolution: 0.5 ppm

Size: Φ20.2 * 16.5

Service Life: 2 years

Storage Period: 6 months

Operating Temperature: -30 - 50℃

Operating Humidity: 15 - 90%RH

Load Resistance: 10 - 47 Ω

II. Alphasense Carbon Monoxide Sensor/CO Sensor - AX Typical Application

Suitable for measuring CO concentration in high H2 concentration environments such as the steel industry where the H2 content is high.

Specifications:

Operating Temperature	-30 - 50℃
Operating Humidity	15 - 90%RH
Load Resistance	10 - 47 Ω
Storage Period	6 months

YJJ CO-AX Electrochemical Carbon Monoxide Sensor Resistant To H2 For Gas Detection 0
