7NH3-500S 059-2400-000 Ammonia Gas Sensors Electrochemical

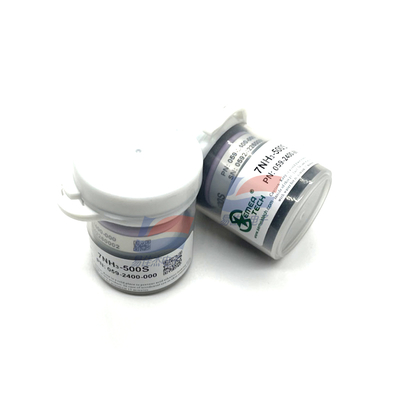

Large Image : 7NH3-500S 059-2400-000 Ammonia Gas Sensors Electrochemical

Product Details:

Place of Origin:	China
Brand Name:	Semea
Model Number:	7NH3-500S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Month

Contact Now

7NH3-500S 059-2400-000 Ammonia Gas Sensors Electrochemical

Description

Nominal Range:

0 ~ 500 Ppm

Maximum Overload:

1000 Ppm

Sensitivity (20℃):

0.035 ± 0.015 μA/ppm

Response Time (T90):

≤ 55 S

Highlight:

electrochemical ammonia gas sensor

7NH3-500S gas sensor

059-2400-000 ammonia detector

7NH3-500S 059-2400-000 Ammonia Gas Sensors Electrochemical

Product Description
This sensor is designed for the measurement of Ammonia concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 7-series electrochemical Ammonia sensors made by the other manufacturers.

Performance Characteristics

Zero Signal (20℃)	< ±0.2 μA
Baseline Shift	(-40℃ ~ 50℃) < 5 ppm
Resolution	1 ppm
Linearity	Linear up to 500 ppm
Bias Voltage	0 mV

Environmental

Temperature Range	-40℃ ~ 50℃
Pressure Range	1 ± 0.1 atm
Humidity Range	15% ~ 90%RH non-condensing

Life Time

Long Time Output Drift	< 2% signal/month
Recommended Storage Temp	10℃ ~ 30℃
Expected Operating Life	2 years in clean air
Storage Life	6 months in original packaging
Warranty	12 months

7NH3-500S 059-2400-000 Ammonia Gas Sensors Electrochemical 0
