4H2-40000 054-0100-000 Hydrogen Gas Sensors 4 Series Electrochemical H2

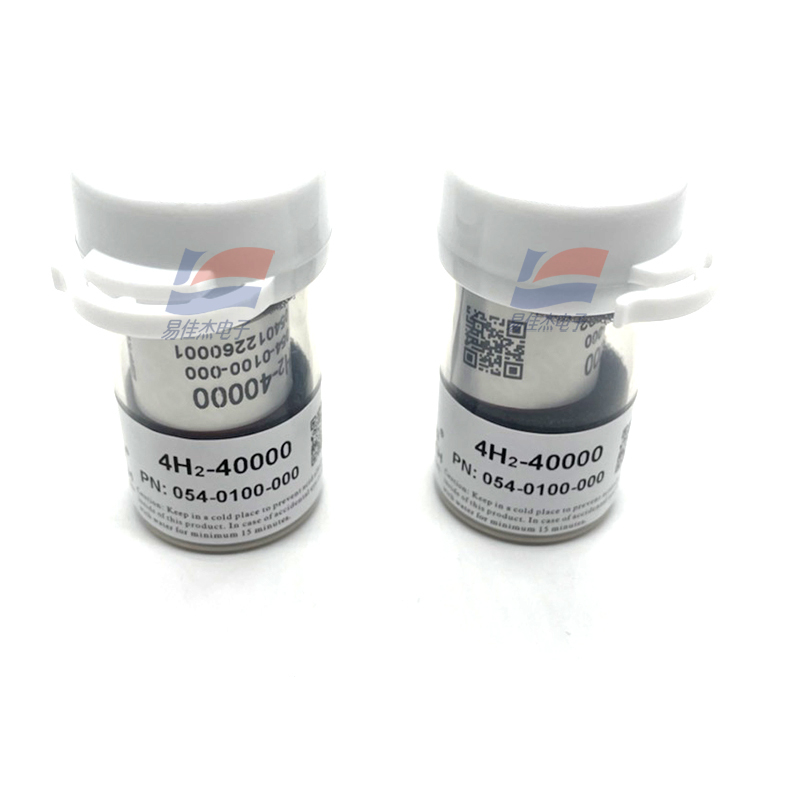

Large Image : 4H2-40000 054-0100-000 Hydrogen Gas Sensors 4 Series Electrochemical H2

Product Details:

Place of Origin:	China
Brand Name:	Semea
Model Number:	4H2-40000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Month

Contact Now

4H2-40000 054-0100-000 Hydrogen Gas Sensors 4 Series Electrochemical H2

Description

Nominal Range:

0 ~ 40,000 Ppm

Maximum Overload:

40,000 Ppm

Sensitivity (20℃):

0.007 ± 0.002 μA/ppm

Response Time (T90):

≤ 60s

Highlight:

Hydrogen gas sensor electrochemical

H2 gas sensor 4 series

Hydrogen sensor with warranty

4H2-40000 054-0100-000 Hydrogen Gas Sensors 4 Series Electrochemical H2

Product Description
The sensor is designed to eliminate CO cross-sensitivity when measuring H2 concentration in the gas phase. It can be used as a pin-to-pin replacement for the standard 4-series electrochemical H2 sensor.

Performance Characteristics

Zero Signal (20℃)	< ±1 μA
Baseline Shift	(-20℃ ~ 45℃) < 20 ppm
Resolution	1 ppm
Linearity	Linear up to 40,000 ppm
Bias Voltage	0 mV

Environmental

Temperature Range	-20℃ ~ 50℃
Pressure Range	1 ± 0.1 atm
Humidity Range	20% ~ 90%RH non-condensing

Life Time

Long Time Output Drift	< 2% signal/month
Recommended Storage Temp	10℃ ~ 30℃
Expected Operating Life	2 years in clean air
Storage Life	6 months in original packaging
Warranty	12 months

4H2-40000 054-0100-000 Hydrogen Gas Sensors 4 Series Electrochemical H2 0
