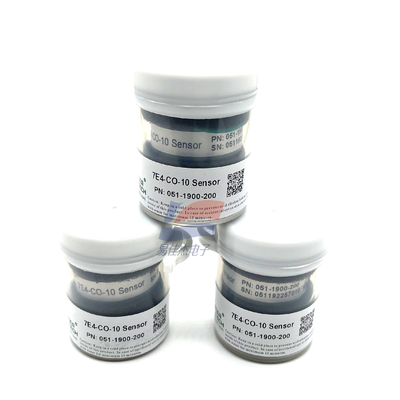

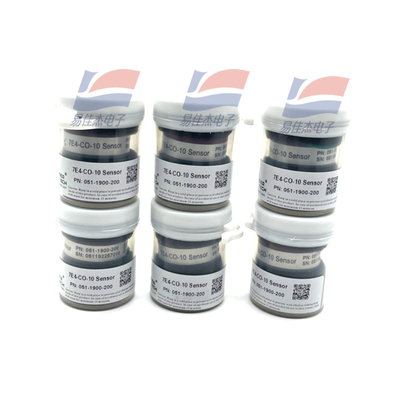

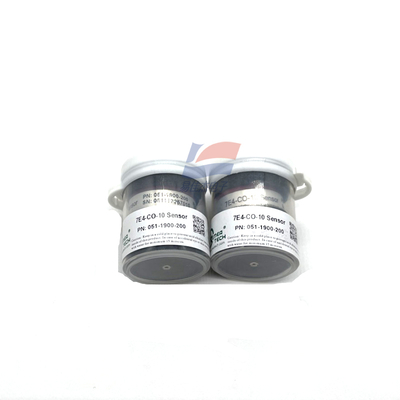

7E4-CO-10 Carbon Monoxide Gas Sensors 4 Electrode Air Quality Monitoring

Large Image : 7E4-CO-10 Carbon Monoxide Gas Sensors 4 Electrode Air Quality Monitoring

Product Details:

Place of Origin:	China
Brand Name:	Semea
Model Number:	7E4-CO-10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Month

Contact Now

7E4-CO-10 Carbon Monoxide Gas Sensors 4 Electrode Air Quality Monitoring

Description

Nominal Range:

0 ~ 10 Ppm

Maximum Overload:

100 Ppm

Sensitivity (20℃):

0.3 ± 0.1 μA/ppm

Response Time (T90):

≤ 35S

Highlight:

4 electrode carbon monoxide sensor

CO gas sensor for air quality

carbon monoxide air monitoring sensor

7E4-CO-10 Carbon Monoxide Gas Sensors 4 Electrode Air Quality Monitoring

This 4-electrode sensor is designed for air quality monitoring to measure the low-concentration CO gas with ultra-high resolutions. The design optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect CO variations at parts per billion (ppb) levels.

Performance Characteristics

Zero Signal (20℃)	< ±100 nA
Baseline Shift	(-40℃ ~ 50℃) < 200 ppb (After compensation)
Resolution	15 ppb
Linearity	Linear up to 10 ppm
Bias Voltage	0 mV

Environmental

Temperature Range	-40℃ ~ 50℃
Pressure Range	1 ± 0.1 atm
Humidity Range	15% ~ 90%RH non-condensing

Life Time

Long Time Output Drift	< 10% signal/year
Recommended Storage Temp	10℃ ~ 30℃
Expected Operating Life	3 years in clean air
Storage Life	6 months in original packaging
Warranty	24 months

7E4-CO-10 Carbon Monoxide Gas Sensors 4 Electrode Air Quality Monitoring 0
