7E4-H2S-10 Hydrogen Sulfide Gas Sensors 4 Electrode H2S Low Concentration

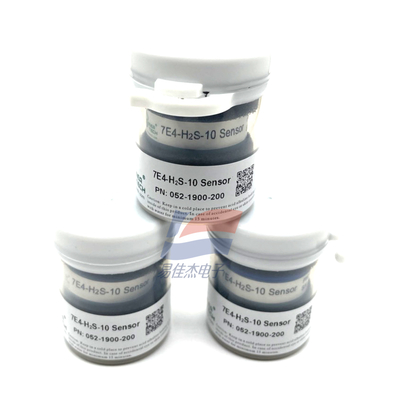

Large Image : 7E4-H2S-10 Hydrogen Sulfide Gas Sensors 4 Electrode H2S Low Concentration

Product Details:

Place of Origin:	China
Brand Name:	Semea
Model Number:	7E4-H2S-10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Month

Contact Now

7E4-H2S-10 Hydrogen Sulfide Gas Sensors 4 Electrode H2S Low Concentration

Description

Nominal Range:

0 ~ 10 Ppm

Maximum Overload:

30 Ppm

Sensitivity (20℃):

1.5 ± 0.5 μA/ppm

Response Time (T90):

≤ 90S

Highlight:

4 electrode H2S gas sensor

low concentration hydrogen sulfide sensor

H2S gas sensor with warranty

7E4-H2S-10 Hydrogen Sulfide Gas Sensors 4 Electrode H2S Low Concentration

This 4-electrode sensor is designed for air quality monitoring to measure the low-concentration H2S gas with ultra-high resolutions. The design optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect H2S variations at parts per billion (ppb) levels.

Performance Characteristics

Zero Signal (20℃)	< ±300 nA
Baseline Shift	(-30℃ ~ 50℃) < 100 ppb
Resolution	2 ppb
Linearity	Linear up to 10 ppm
Bias Voltage	0 mV

Environmental

Temperature Range	-30℃ ~ 50℃
Pressure Range	1 ± 0.1 atm
Humidity Range	15% ~ 90%RH non-condensing

Life Time

Long Time Output Drift	< 10% signal/year
Recommended Storage Temp	10℃ ~ 30℃
Expected Operating Life	2 years in clean air
Storage Life	6 months in original packaging
Warranty	24 months

7E4-H2S-10 Hydrogen Sulfide Gas Sensors 4 Electrode H2S Low Concentration 0
