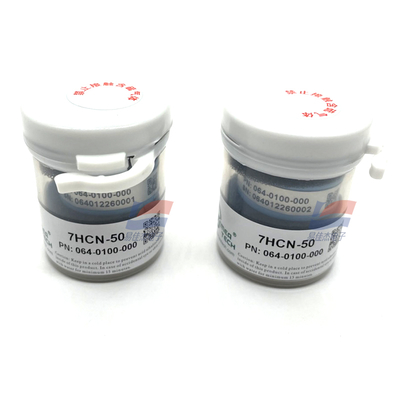

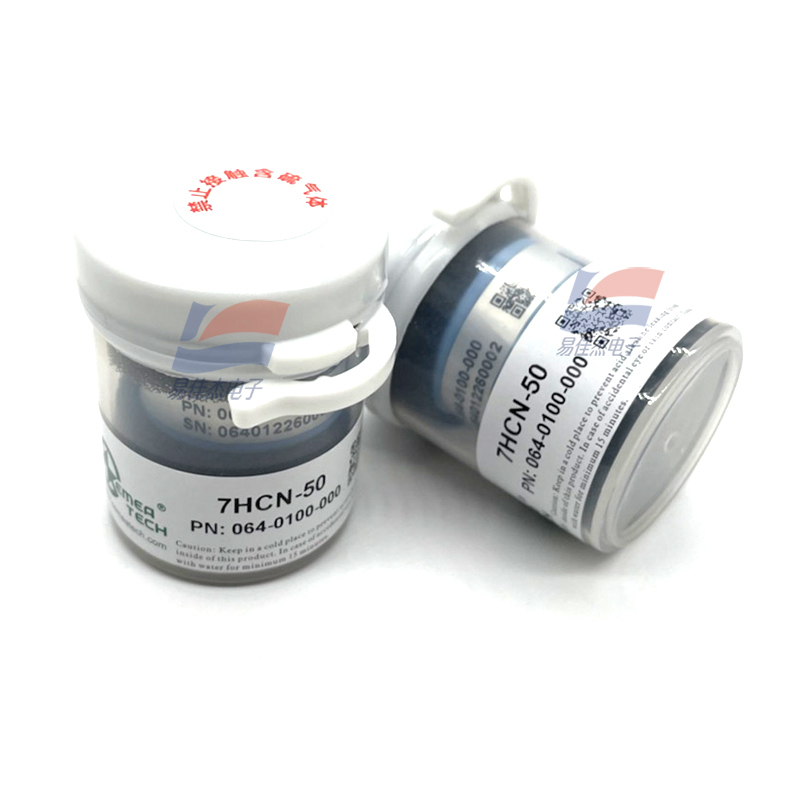

7HCN-50 064-0100-000 Hydrogen Cyanide HCN Electrochemical 7 Series

Large Image : 7HCN-50 064-0100-000 Hydrogen Cyanide HCN Electrochemical 7 Series

Product Details:

Place of Origin:	China
Brand Name:	Semea
Model Number:	7HCN-50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Months

Contact Now

7HCN-50 064-0100-000 Hydrogen Cyanide HCN Electrochemical 7 Series

Description

Nominal Range:

0 ~ 50 Ppm

Maximum Overload:

100 Ppm

Sensitivity (20°C):

0.050± 0.015 μA/ppm

Response Time (T90):

≤ 120S

Highlight:

HCN gas sensor electrochemical

7 series hydrogen cyanide detector

HCN sensor with warranty

7HCN-50 064-0100-000 Hydrogen Cyanide HCN Electrochemical 7 Series

Description
This sensor is designed for themeasurement of Hydrogen Cyanide concentration in gas phase. It can be used as a pin-to-pin replacement for the standard 7-series electrochemical Hydrogen Cyanide sensors made by other manufacturers.

Performance Characteristics

Zero Signal (20°C)	< ±0.2 JA
Baseline Shift (-20°C~50°C)	<1 ppm
Resolution	0.2 ppm
Bias Voltage	0 mv

Environmental

Temperature Range	-20°C ~ 50°C
Pressure Range	1 ± 0.1 atm
Humidity Range	15% ~ 90%RH non-condensing

Life Time

Long Time Output Drift	< 2% signal/month
Recommended Storage Temp	10°C ~ 30°C
Expected Operating Life	2 years in clean air
Storage Life	6 months in original packaging
Warranty	12 months

7HCN-50 064-0100-000 Hydrogen Cyanide HCN Electrochemical 7 Series 0
