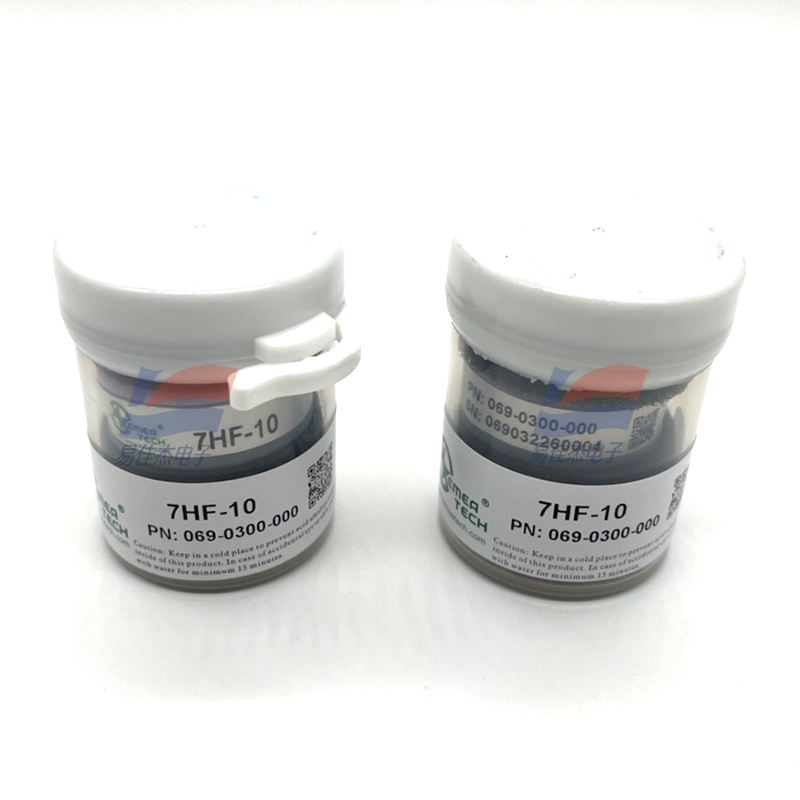

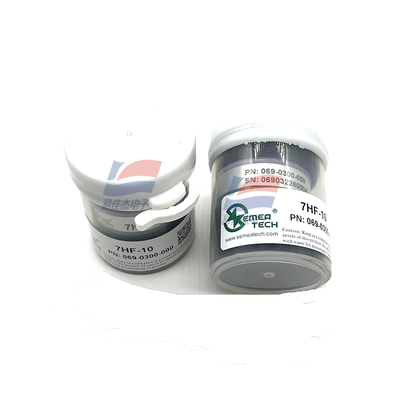

7HF-10 Hydrogen Fluoride Gas Sensors Electrochemical 7Series

7HF-10 Hydrogen Fluoride Gas Sensors Electrochemical 7Series
7HF-10 Hydrogen Fluoride Gas Sensors Electrochemical 7Series 7HF-10 Hydrogen Fluoride Gas Sensors Electrochemical 7Series

Large Image :  7HF-10 Hydrogen Fluoride Gas Sensors Electrochemical 7Series

Product Details:
Place of Origin: China
Brand Name: Semea
Model Number: 7HF-10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Box
Delivery Time: 3-5Workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PCS/Months
Contact Now

7HF-10 Hydrogen Fluoride Gas Sensors Electrochemical 7Series

Description
Nominal Range: 0 ~ 10 Ppm Maximum Overload: 50 Ppm
Sensitivity (20℃): -0.4 ± 0.1 μA/ppm Response Time (T90): ≤ 120S
Highlight:

hydrogen fluoride gas sensor

,

electrochemical gas sensor 7Series

,

7HF-10 gas sensor with warranty

7HF-10 Hydrogen Fluoride Gas Sensors Electrochemical 7Series



This sensor is designed for the measurement of Hydrogen Fluoride concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 7-series electrochemical Hydrogen Fluoride sensors made by the other manufacturers.



Installation
Output signals from the sensor pins are different. Inappropriate use of the pins in product design will affect the sensor functionality. Exposure to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of the plastic enclosure of the sensor.



Environmental

Temperature Range
 -20℃ ~ 50℃
Pressure Range 1 ± 0.1 atm
Humidity Range 15% ~ 90%RH non-condensing



Life Time

Long Time Output Drift
< 2% signal/month
Recommended Storage Temp 10℃ ~ 30℃
Expected Operating Life 2 years in clean air
Storage Life 6 months in original packaging
Warranty 12 months



7HF-10 Hydrogen Fluoride Gas Sensors Electrochemical 7Series 0
