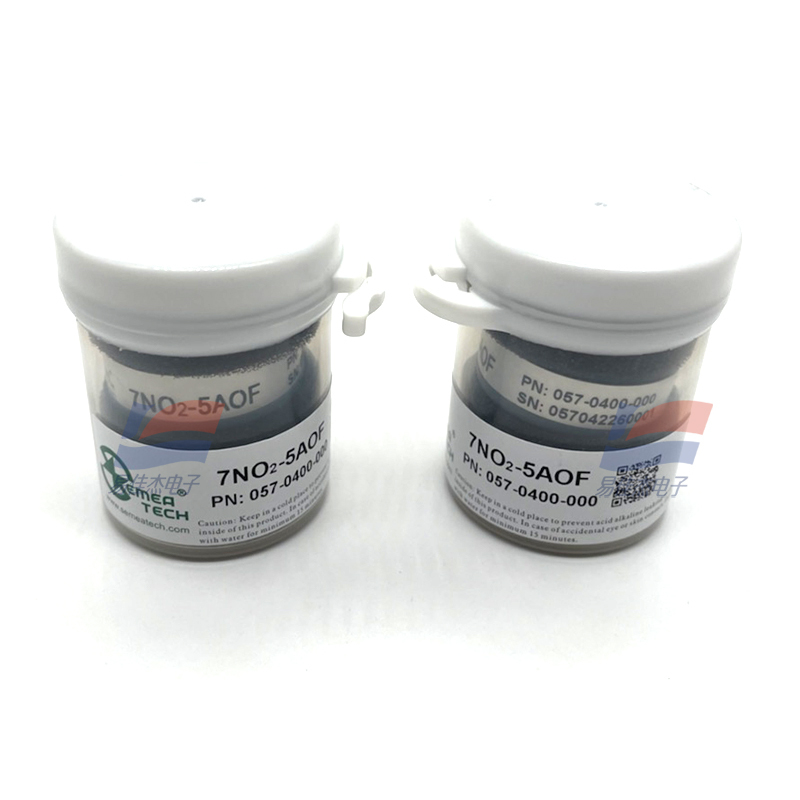

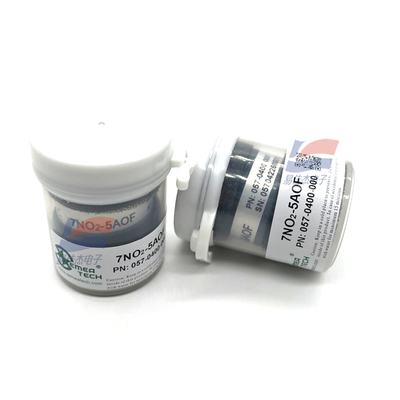

7NO2-5AOF Nitrogen Dioxide Gas Sensor Electrochemical 7Series

Large Image : 7NO2-5AOF Nitrogen Dioxide Gas Sensor Electrochemical 7Series

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	7NO2-5AOF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Months

Contact Now

7NO2-5AOF Nitrogen Dioxide Gas Sensor Electrochemical 7Series

Description

Nominal Range:

0 ~ 5 Ppm

Maximum Overload:

20 Ppm

Sensitivity (20℃):

-0.65 ± 0.20 μA/ppm

Response Time (T90):

≤ 90S

Highlight:

Nitrogen Dioxide Gas Sensor Electrochemical

7Series NO2 Gas Sensor

7NO2-5AOF Electrochemical Sensor

7NO2-5AOF Nitrogen Dioxide Gas Sensor Electrochemical 7Series

7NO2-5AOF refers to a 7-Series electrochemical Nitrogen Dioxide (NO2) gas sensor manufactured by companies like SemeaTech. It is designed for detecting NO2 in the environment, with a typical nominal range of 0 to 5 parts per million (ppm). This sensor features a filter to reduce cross-sensitivity to other gases like sulfur dioxide (SO2) and ozone (O3), making it suitable for air quality monitoring and industrial emission detection applications.

Performance Characteristics

Zero Signal (20℃)	< ±0.4 μA
Baseline Shift (-20℃ ~ 50℃)	< 0.5 ppm
Resolution	0.02 ppm
Linearity	Linear up to 5 ppm
Bias Voltage	0 mV

Environmental

Temperature Range	-20℃ ~ 50℃
Pressure Range	1 ± 0.1 atm
Humidity Range	15% ~ 90%RH non-condensing

7NO2-5AOF Nitrogen Dioxide Gas Sensor Electrochemical 7Series 0
