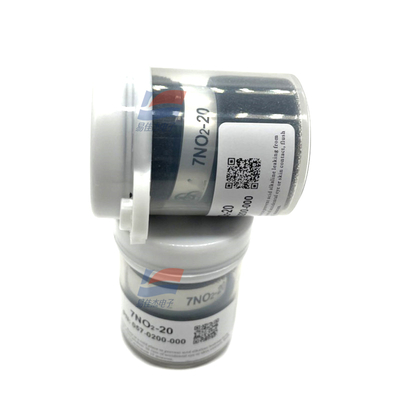

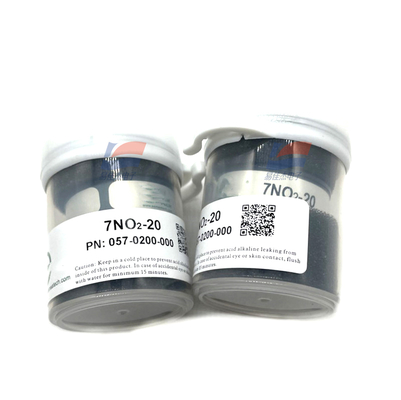

7NO2-20 057-0200-000 Nitrogen Dioxide Gas Sensor 20PPM Electrochemical

Large Image : 7NO2-20 057-0200-000 Nitrogen Dioxide Gas Sensor 20PPM Electrochemical

Product Details:

Place of Origin:	China
Brand Name:	Semea
Model Number:	7NO2-20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Months

Contact Now

7NO2-20 057-0200-000 Nitrogen Dioxide Gas Sensor 20PPM Electrochemical

Description

Nominal Range:

0~20 Ppm

Maximum Overload:

100 Ppm

Sensitivity (20°C):

-0.8 ± 0.2 μAppm

Response Time (T90):

≤30s

Highlight:

Nitrogen Dioxide Gas Sensor 20PPM

Electrochemical NO2 Gas Sensor

20PPM Nitrogen Dioxide Sensor

7NO2-20 057-0200-000 Nitrogen Dioxide Gas Sensor 20PPM Electrochemical

Description
This sensor is designed for the measurement of Nitrogen Dioxide concentration in gas phase. It can be used as a pin-to-pin replacement for the standard 7-series electrochemical Nitrogen Dioxide sensors made by other manufacturers.

Performance Characteristics

Baseline Shift (-40°C~50°C)	<0.5 ppm
Resolution	0.005 ppm
Linearity	Linear up to 20 ppm
Bias Voltage	0 mV

Environmental

Temperature Range	-40°C-50°C
Pressure Range	1 + 0.1 atm
Humidity Range	15%~90%RH non-condensing

7NO2-20 057-0200-000 Nitrogen Dioxide Gas Sensor 20PPM Electrochemical 0
