7O3-1 068-0300-000 Ozone Gas Sensors Electrochemical 7 Series 20PPM

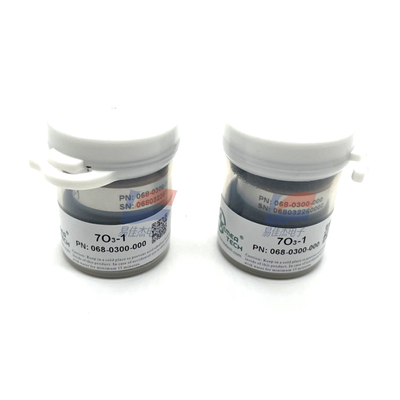

Large Image : 7O3-1 068-0300-000 Ozone Gas Sensors Electrochemical 7 Series 20PPM

Product Details:

Place of Origin:	China
Brand Name:	Semea
Model Number:	7O3-1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Months

Contact Now

7O3-1 068-0300-000 Ozone Gas Sensors Electrochemical 7 Series 20PPM

Description

Nominal Range:

0 ~ 20 Ppm

Maximum Overload:

50 Ppm

Sensitivity (20℃):

-1.00 ± 0.25 μA/ppm

Response Time (T90):

≤ 45S

Highlight:

electrochemical ozone gas sensor

20ppm ozone gas detector

7 series gas sensor

7O3-1 068-0300-000 Ozone Gas Sensors Electrochemical 7 Series 20PPM

Product Description
This sensor is designed for the measurement of Ozone concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 7-series electrochemical Ozone sensors made by the other manufacturers.

Performance Characteristics

Zero Signal (20℃)	< ±0.2 μA
Baseline Shift	(-40℃ ~ 50℃) < 0.1 ppm
Resolution	0.05 ppm
Linearity	Linear up to 20 ppm
Bias Voltage	0 mV

Environmental

Temperature Range	-40℃ ~ 50℃
Pressure Range	1 ± 0.1 atm
Humidity Range	15% ~ 90%RH non-condensing

7O3-1 068-0300-000 Ozone Gas Sensors Electrochemical 7 Series 20PPM 0
