7SO2-20 Sulfur Dioxide Gas Sensors Electrochemical 7 Series 20PPM

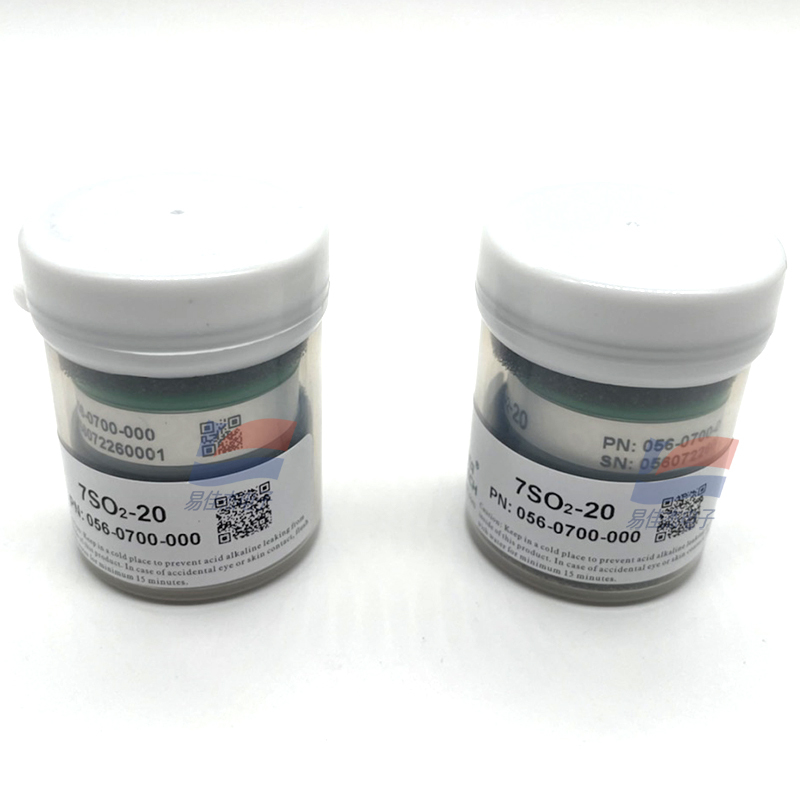

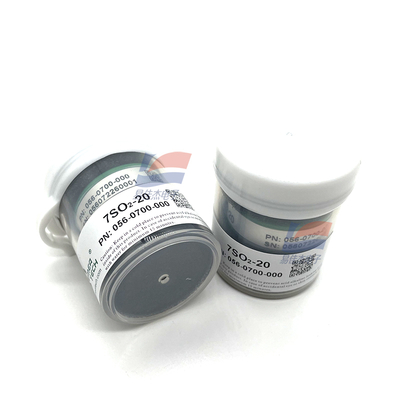

Large Image : 7SO2-20 Sulfur Dioxide Gas Sensors Electrochemical 7 Series 20PPM

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	7SO2-20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Months

Contact Now

7SO2-20 Sulfur Dioxide Gas Sensors Electrochemical 7 Series 20PPM

Description

Nominal Range:

0~20 Ppm

Maximum Overload:

20 Ppm

Sensitivity (20°C):

0.45 +0.10 μAVppm

Response Time (T90):

≤90s

Highlight:

7SO2-20 sulfur dioxide gas sensor

electrochemical gas sensor 20ppm

7 series sulfur dioxide sensor

7SO2-20 Sulfur Dioxide Gas Sensors Electrochemical 7 Series 20PPM

Description
This sensor is designed for the measurement of Sulfur Dioxide concentration in the gas phase with no sensitivity loss over time and no cross-sensitivity from H2S. It can be used as a replacement for the standard 7-series EC Sulfur Dioxide sensors available on the market.

Performance Characteristics

Zero Signal (20°C)	< +0.2 μA
Baseline Shift (-20°C~60°C)	<0.5 ppm
Resolution	0.01 ppm
Linearity	Linear up to 20 ppm
Bias Voltage	0 mV

Environmental

7SO2-20 Sulfur Dioxide Gas Sensors Electrochemical 7 Series 20PPM 0

Temperature Range	-20°C-60°C
Pressure Range	1 +0.1 atm
Humidity Range	5%~95%RH non-condensing

Tag:
