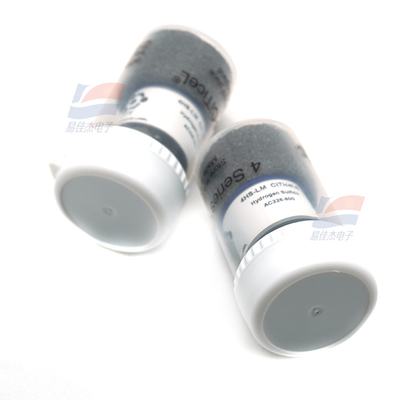

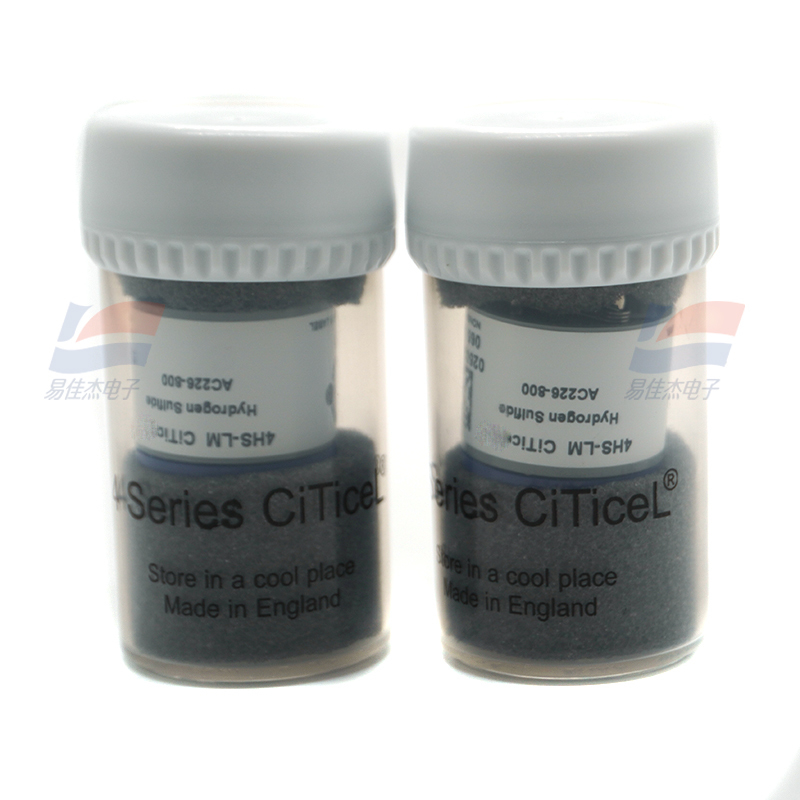

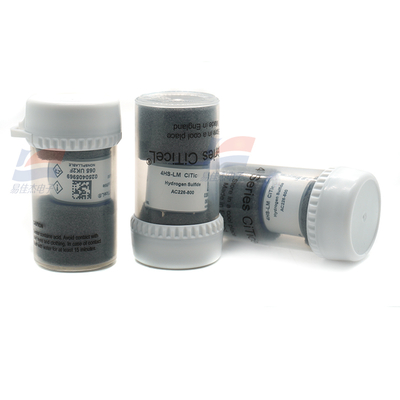

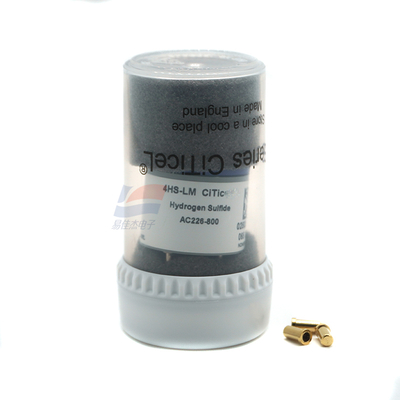

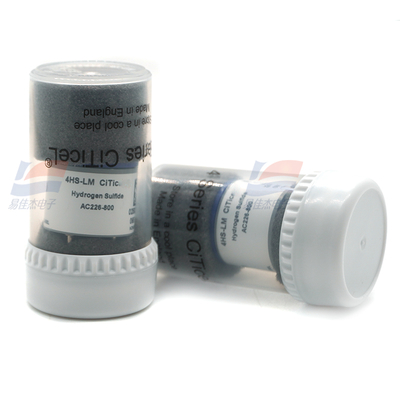

4HS-LM Hydrogen Sulphide Gas Sensors 4Series 3 Electrode 100PPM

Large Image : 4HS-LM Hydrogen Sulphide Gas Sensors 4Series 3 Electrode 100PPM

Product Details:

Place of Origin:	UK
Brand Name:	CITY
Model Number:	4HS-LM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Months

Contact Now

4HS-LM Hydrogen Sulphide Gas Sensors 4Series 3 Electrode 100PPM

Description

Nominal Range:

0-100 Ppm

Maximum Overload:

500 Ppm

Expected Operating Life:

Two Years In Air

Output Signal:

0.70 + 0.15 μA/ppm

Highlight:

Hydrogen Sulphide gas sensor 100PPM

4Series 3 electrode gas sensor

H2S gas sensor with warranty

4HS-LM Hydrogen Sulphide Gas Sensors 4Series 3 Electrode 100PPM

Industrial Automation division. This 4-series, 3-electrode sensor is designed for measuring H2S in the range of 0-100 parts per million (ppm) and is notable for its low cross-sensitivity to methanol, making it suitable for certain safety-critical applications like portable gas detectors.

Specification:

Resolution	0.1 ppm
Temperature Range	-40'C to +50°C
Pressure Range	Atmospheric ± 10%
Pressure Coefficient	No data
T90 Response Time	≤30 seconds
Relative Humidity Range	15 to 90% non-condensing
Typical Baseline Range	-0.1 to + 0.4ppm equivalent

4HS-LM Hydrogen Sulphide Gas Sensors 4Series 3 Electrode 100PPM 0
