4OX-V-CN 4OXV-CN AAY80-390-CN Gas Oxygen Sensor False Alarm Immunity Reliably Meets Stated Life

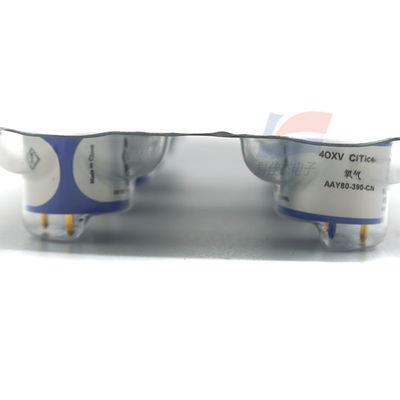

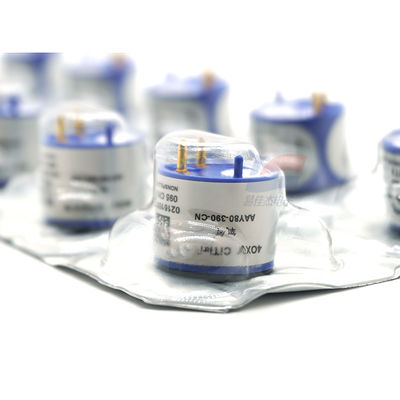

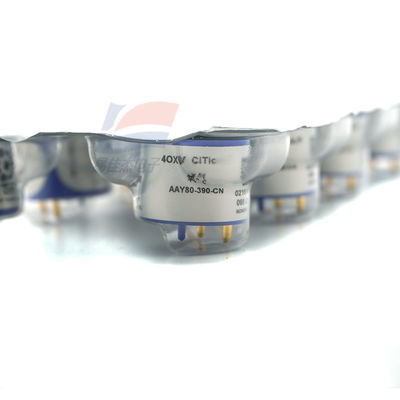

Large Image : 4OX-V-CN 4OXV-CN AAY80-390-CN Gas Oxygen Sensor False Alarm Immunity Reliably Meets Stated Life

Product Details:

Place of Origin:	CN
Model Number:	4OX-V-CN 4OXV-CN AAY80-390-CN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

4OX-V-CN 4OXV-CN AAY80-390-CN Gas Oxygen Sensor False Alarm Immunity Reliably Meets Stated Life

Description

Measurement Range:	1 - 25% Vol. O₂	Maximum Overload:	30% Vol. O₂
Output Signal:	0.10 ± 0.02 MA In Air	Response Time (T90):	< 15 Seconds
Zero Current (Offset):	< 0.6% Vol. O₂	Pressure Coefficient:	< 0.02% Signal/mbar
Highlight:	oxygen gas sensor with false alarm immunity , 4OXV-CN oxygen sensor reliable lifespan , AAY80-390-CN oxygen gas sensor

4OX-V-CN 4OXV-CN Gas Oxygen Sensor False Alarm Immunity Reliably Meets Stated Life

Features:

False alarm immunity.
Enhanced response time in extreme applications.
Reliably meets stated life.
Superior environmental performance.

Applications:

General purpose, portable or fixed life safety.

Measurement Technology	Electrochemical
Measurement Range	1 - 25% vol. O₂
Maximum Overload	30% vol. O₂
Output Signal	0.10 ± 0.02 mA in air
Response Time (T90)	< 15 seconds
Zero Current (Offset)	< 0.6% vol. O₂
Linearity	Can be considered linear in many cases
Operating Temperature Range	- 20 °C to + 50 °C (up to 3 months continuous across RH range)
Recommended Storage Temp	0 °C to 20 °C
Thermal Transient	< 23.5% vol. O₂ (temp. plunge + 22 °C to - 20 °C)
Operating Pressure Range	Atmospheric ± 20%
Pressure Coefficient	< 0.02% signal/mbar
Pressure Transient	< 200% signal change (60 cm H₂O step change)
Relative Humidity Range (at 0 °C to 20 °C)	Continuous: 5 to 95% RH non - condensing; Short term: 0 to 99% RH non - condensing
Recommended Load Resistor	100 Ω
Casing Material	ABS
Weight	< 16 g
Orientation Sensitivity	< 0.2% vol. O₂ equivalent
Long - term Output Drift	< 2% signal/month, typically < 5% over operating life

4OX-V-CN 4OXV-CN AAY80-390-CN Gas Oxygen Sensor False Alarm Immunity Reliably Meets Stated Life 0
