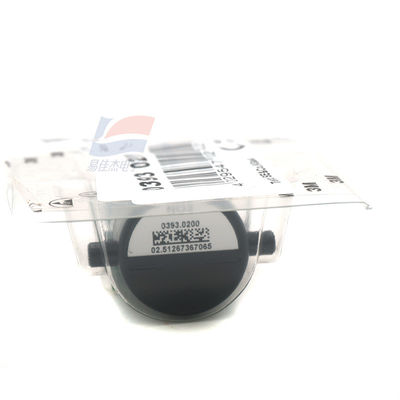

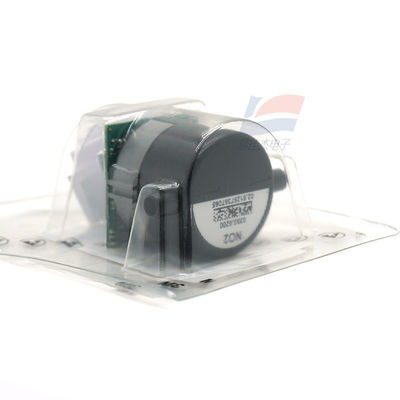

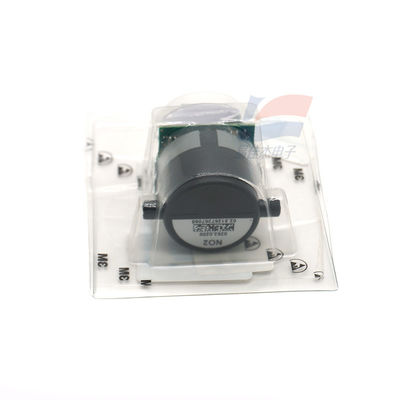

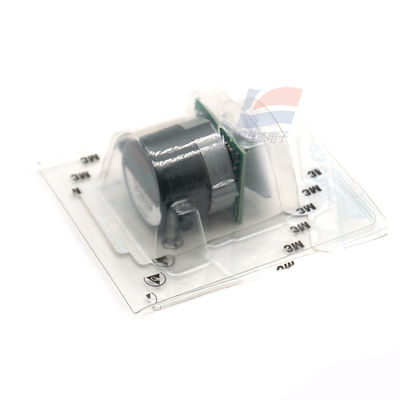

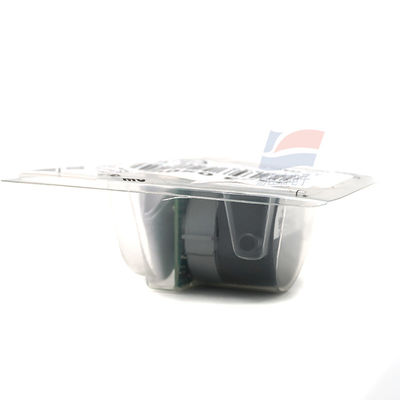

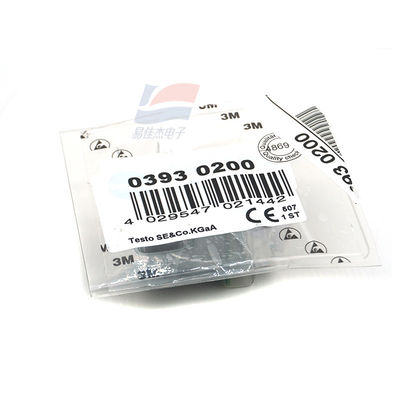

0393.0200 0393 0200 Nitrogen Dioxide Gas Sensor For Measuring Concentration Of Nitrogen Dioxide In Flue Gas

Large Image : 0393.0200 0393 0200 Nitrogen Dioxide Gas Sensor For Measuring Concentration Of Nitrogen Dioxide In Flue Gas

Product Details:

Place of Origin:	Germany
Model Number:	0393.0200 0393 0200

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

0393.0200 0393 0200 Nitrogen Dioxide Gas Sensor For Measuring Concentration Of Nitrogen Dioxide In Flue Gas

Description

Target Gas:	Nitrogen Dioxide	Measurement Range:	0 - 500 Ppm
Resolution:	0.1 Ppm	Weight:	18 G
Dimensions:	40 X 30 X 30 Mm	Product/Housing Material:	Plastic
Highlight:	Nitrogen Dioxide gas sensor for flue gas , NO2 gas sensor with concentration measurement , Gas sensor for nitrogen dioxide monitoring

0393.0200 0393 0200 Nitrogen Dioxide Gas Sensor For Measuring Concentration Of Nitrogen Dioxide In Flue Gas

Features:

Easy to Replace: The pre - calibrated sensor can be simply plugged into the appropriate flue gas analyzer, allowing users to replace the sensor on - site by themselves.

Application:

Flue Gas Measurement: It is mainly used for measuring the concentration of nitrogen dioxide in flue gas, and is suitable for being used with Testo 350 exhaust gas analysis systems and other similar equipment.

Target Gas	Nitrogen Dioxide (NO₂)
Measurement Range	0 - 500 ppm
Resolution	0.1 ppm
Weight	18 g
Dimensions	40 x 30 x 30 mm (LxWxH)
Product/Housing Material	Plastic
Product Colour	Grey; Black
Output Signal	370±70nA/ppm (Based on similar models, for reference only)
Temperature Range	- 40°C to 45°C (Estimated, for reference)
Pressure Range	Standard atmospheric pressure±10% (Estimated, for reference)
T90 Response Time	< 40sec (Estimated, for reference)
Relative Humidity Range	15% to 90% RH
Zero - point Output (Pure Air, 20°C)	0 to 0.2ppm (Estimated, for reference)
Zero - point Drift (+20°C to 40°C)	- 1ppm (Estimated, for reference)
Long - term Output Drift	< 2% signal loss/month (Estimated, for reference)
Recommended Load Resistance	10 - 33Ω (Estimated, for reference)
Bias Voltage	Not Required

0393.0200 0393 0200 Nitrogen Dioxide Gas Sensor For Measuring Concentration Of Nitrogen Dioxide In Flue Gas 0
