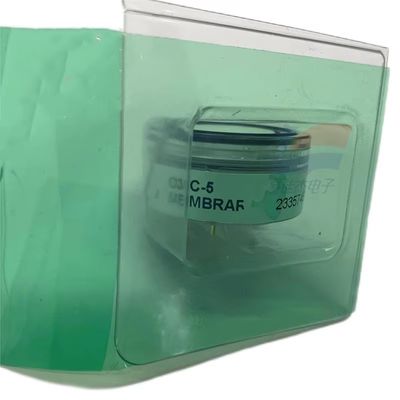

YJJ O3/C-5 Electrochemical Ozone Gas Sensor Is Used For Environmental Monitoring

Product Description:

YJJ O3/C-5 Electrochemical Ozone Gas Sensor Is Used For Environmental Monitoring

Features:

O3/ C-5 ozone sensor

Various models: O3/ c-5, O3/ c-100, O3/ c-1000, O3/ m-5, O3/ m-100, O3/ s-5, O3/ s-30000, etc

Technical parameters of O3 sensor:

O3/ c-5 measuring range: 0 ~ 5ppm maximum load: 50ppm working life: 2-year output signal in air: -1500±500nA/ PPM resolution: 0.02 PPM temperature range: -20°C to 45°C response time (T90) : less than 60sec humidity range: 15%to90% reference line: <0.1 PPM typical signal drift: less than 2% signal loss/months recommended loading resistance: 10 Ohm bias voltage: not required

High precision ozone sensor O3/ s-5

Category: ozone sensor

Product category: high precision

Key words: ozone O3

Product features: high precision

Main product parameters:

Measurement range: 0 ~ 5ppm

Zui heavy load: 50ppm

Working life: 2 years in air

Output signal: -1500±500nA/ PPM

Resolution: 0.02 PPM

Temperature range: -40°C to 45°C

Pressure range: standard atmosphere ± 10%

Less 60sec response time (T80) : less than 60sec

Relative humidity range: 15%to90%

Typical baseline range (pure air, 20 ℃) : <0.1 PPM

Zui large zero drift (20°C to 40°C) : 0.1 PPM

Long-term output drift: less 2% signal loss/months

Recommend a load resistance: 10 Ω

Bias voltage: no need

Main applications: water purification process, environmental pollution detection, atmospheric environment detection

Product name: O3/ s-30000 with high range

Category:

Product category: high range

Product features: high range

Main product parameters:

Measurement range: 0 -- 30,000 PPM

Zui big overload: 40,000 PPM

Life span: 2 years in the air

Output signal: -4.5 ± 3.5na/PPM

Resolution: 10ppm

Operating temperature range: -40 ℃ to 45 ℃

Pressure range: standard atmosphere ± 10%

T80 response time :<60 seconds

Relative humidity range :15 % to 90 % non - condensation

Typical baseline range (pure air, 20 ℃) <30ppm

Zui large zero drift (20 ° C to +40 ° C) : 30ppm

Long-term output drift: < 2% signalloss/month

Recommend a load resistance: 10 Ω

Bias voltage: no need

Main applications: water purification process, environmental pollution detection, atmospheric environment detection

Product name: high precision O3/ c-2

Category:

Product category: high precision

Key words: ozone O3

Product features: high precision

Main product parameters:

Measurement range: 0 ~ 2ppm

Zui heavy load: 10ppm

Working life: 2 years in air

Output signal: -3000±1200nA/ PPM

Resolution: 0.03 PPM

Temperature range: -40°C to 50°C

Less 60sec response time (T80) : less than 60sec

Relative humidity range: 15%to90%

Typical baseline range (pure air, 20 ℃) : <0.05 PPM

Zui large zero drift (20 ° C to +40 ° C) : 0.1 PPM

Long-term output drift: less 2% signal loss/months

Recommend a load resistance: 10 Ω

Bias voltage: no need

Main applications: water purification process, environmental pollution detection, atmospheric environment detection
