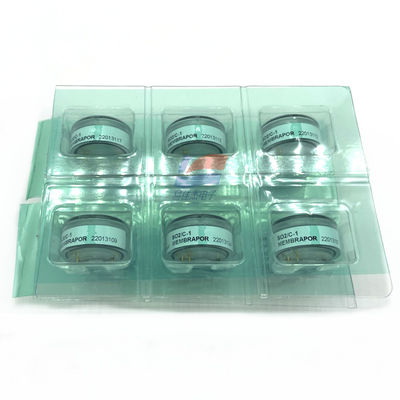

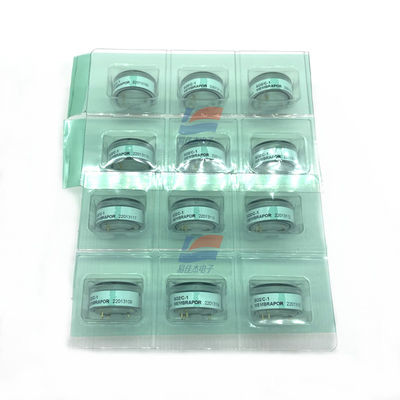

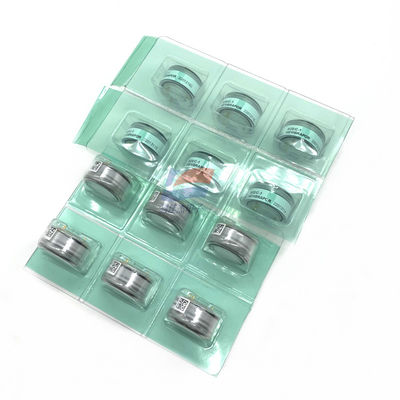

YJJ NO/C-1 Electrochemical Nitric Oxide Sensor Is Used For Environmental Monitoring

Product Description:

YJJ NO/C-1 Electrochemical Nitric Oxide Sensor Is Used To Detect Concentration Of Nitric Oxide in Gases

Features:

Measurement Operation Principle 3-Electrode Electrochemical
Nominal Range
0 - 1 ppm Maximum Overload 2 ppm
Inboard Filter
- Output Signal 3000 ± 1200 nA/ppm
Resolution (Electronics dependent)
< 0.01 ppm T90 Response Time < 10 s
Typical Baseline Range (pure air, 20°C)
0.1 ppm to 0.7 ppm1) Maximum Zero Shift (+20°C to +40°C) see Graph
Repeatability
< 2 % of signal Output Linearity Linear
Gain (Only applies to 4-Electrode sensors)
-
1)Fresh sensors with bias need 24 - 72 h for stabilization of the baseline.

Selection data of electrochemical gas sensor

Test gas Type Product code Measurement range (PPM) Resolution (PPM) Overload resistance (PPM) Output signal can be replaced by other product models

CT Alphasense

CO CO/CF-200 φ 32.0×16.8,3 years life 13g, filter acidic gas 200 0.1 400 500±100nA/ PPM

CO/CF - 1000 (special) Φ 32.0 x 16.8, 3 years life 13 g, filtered acidic gas 1000 0.5 & lt; 2000 100±20nA/ PPM 7E/F and 7E CO-B1 and co-bf

CO/CFA-1000 φ 32.0×16.8, 3-year life 13g, filter acidic gas, with H2 compensation 1,000 0.5Nd 100±20nA/ PPM A7E/F and A7E

CO/CFA-10000 φ 32.0×16.8, 3-year life 13g, filter acid gas, with H2 compensation 10,000 0.5Nd 15±4nA/ PPM

CO/S-1000 φ 41.0×18.4, 3-year life 32g, 1,000 1 4,000 100±20nA/ PPM 3E, 3EU

CO/SF-1000 φ 41.0×18.4, 3-year life 32g, filter acid gas 1,000 0.5 2,000 100±20nA/ PPM 3EF, 3E, 3EU

CO/SFA-1000 φ 41.0×18.4, 3-year life 32g, with H2 compensation 1,000 0.5nd 100±20nA/ PPM

CO/SF-2000 φ 41.0×18.4, 3-year life 32g, filter acidic gas 2,000 1 10,000 50±10nA/ PPM

CO/SF-2000-S φ 41.0×18.4, 3-year life 27g, filter acidic gas 2000 1 10,000 50±10nA/ PPM

CO/SF-2E φ 41.0×18.4, 3-year life 32g, filter acid gas 300 0.5 500 100±20nA/ PPM 2EF

CO/SF-2E-S φ 41.0×18.4, 3-year life 27g, filter acid gas 300 0.5 500 100±20nA/ PPM 2EF

CO/SF-4E-S φ 41.0×18.4, 3-year life 27g, filter acid gas, with H2 compensation < 2% 2000 1 4000 75±25nA/ PPM A3E/D and A3E/F co-bx

CO/SF-4000-S φ 41.0×18.4, 3-year life 27g, filter acidic gas in the flow 4,0002 20,000 30±6nA/ PPM 3F/F and 3F/D

CO/MF-500(special) φ 20.0×16.4,2 years life, 5.4g, filtered H2S and SO2 gas 500 1 ND 70±15nA/ PPM 4CF and 4CO co-A1

CO/MFA-500 φ 20.0×16.4, 2-year life 5.4g, filter H2S and SO2 gas, with H2 compensation 500 1 ND 60±15nA/ PPM

CO/MF-1000 φ 20.0×16.4, 2-year life 5.4g, filtered H2S and SO2 gas 1000 CO-AF

CO/MF-2000 φ 20.0×16.4,2 years life 5.4g, filtered H2S and SO2 gas 2000 CO-AX

H2S H2S/C-50 φ 32.0×16.8, 2-year life 13g 50 0.05 500 1700±300nA/ PPM 7HH H2S-BH

H2S/C-200 φ 32.0×16.8, 2-year life 13g 200 0.25 500 380±80nA/ PPM 7H H2S-B1

H2S/S-50 φ 41.0×18.4, 2-year life 32g 50 0.05 500 1700±300nA/ PPM 3HH

H2S/S-200 φ 41.0×18.4, 2-year life 32g 200 0.25 500 370±80nA/ PPM 3H

H2S/ m-50 φ 20.0×16.4, 2-year life 5.4g 50 0.05 ND 1200±200nA/ PPM h2s-ah

H2S/M-100 φ 20.0×16.4, 2-year life 5.4g 100 0.1 ND 700±140nA/ PPM 4HS H2S-A1,H2S-A2

O3 O3/ s-5 φ 41.0 x 18.4, 2-year life 13g 5 0.02 50 1500±500nA/ PPM

O3/C-5 φ 32.0×16.8, 2-year life 13g 5 0.02 50-1500 ±500nA/ PPM

CH20 CH20/C-10 φ 32.0×16.8, 3-year life 13g 10 0.05 50-800 ±200nA/ PPM

CH20/S-10 φ 41.0×18.4, 2-year life 13g 10 0.05 50-800 ±200nA/ PPM

NO NO/C-25 φ 32.0×16.8, 3-year life 13g 25 0.15 2100±420nA/ PPM

NO/C-100 φ 32.0×16.8, 3-year life 13g 100 0.5Nd 550±110nA/ PPM 7NT

NO/CF-100 φ 32.0×16.8, 3-year life 13g, filter SO2 100 0.5Nd 400±80nA/ PPM 7NT NO-B1

NO/S-25 φ 41.0 × 18.4, 3-year life 32g 25 0.15 2100±420nA/ PPM

NO/S-100 φ 41.0×18.4, 3-year life 32g 100 0.5nd 550±110nA/ PPM

NO/SF-100 φ 41.0×18.4, 3-year life 32g, filter SO2 100 0.5Nd 550±110nA/ PPM 3NT

NO/SF-2000-S φ 41.0×18.0, 3-year life 27g, filter SO2 gas in the airflow 2,000 1 5,000 100v20nA/ PPM 3NF/F

NO/M-250 φ 20.0×16.4, 2-year life 5.4g 250 0.5 ND 360±80nA/ PPM 4NT NO-A1

NO2 NO2/C-20 φ 32.0×16.8, 3-year life 13g 20 0.1 200-1200 ±200nA/ PPM 7ND NO2-B1

NO2/S-20 φ 41.0×18.4, 3-year life 32g 20 0.1 200-1200 ±200nA/ PPM 3NDH

NO2/S-500-S φ 41.0×18.4, 3-year life 32g 500 0.5 1000 370±70nA/ PPM

NO2/M-20 φ 20.0×16.4, 2-year life 5.4g 20 0.1Nd-1200 ±200nA/ PPM 4ND NO2-A1

NO2/M-2E φ 20.0×16.4, 2-year life 5.4g 20 0.1Nd-250 ±750nA/ PPM

H2 H2/C-1000 φ 32.0×16.8, 2-year life 13gCO< 20 1,000 2 2,000 30±10nA/ PPM 7HYT

H2/CA-1000 φ 32.0×16.8, 2-year life 13g, with CO compensation < 2% 1,000 2 2,000 17±40nA/ PPM

H2/S-1000 φ 41.0×18.4, 2-year life 32gCO< 20 1,000 2 2,000 30±10nA/ PPM 3HYT

H2/SA-1000 φ 41.0×18.4, 2-year life 32g, with CO compensation < 2% 1,000 2 2,000 17±40nA/ PPM

H2/ m-1000 φ 20.0×16.4, 2-year life 5.4g 1,000 1 ND 25±10nA/ PPM 4HYT

CL2 CL2/C-20 φ 32.0×16.8, 2-year life 13g 20 0.1 200 :-1000±250nA/ PPM 7CLH Cl2-B1

CL2/S-20 φ 41.0×18.4, 2-year life 32GNO2-20 20 0.1 200-1000 ±250nA/ PPM 3CLH

CL2/M-20 φ 20.0×16.4, 2-year life 5.4g 20 0.1 200-1000 ±250nA/ PPM 4CL Cl2-A1

SO2 SO2/ c-20 φ 32.0×16.8, 2-year life 13gH2S--30 20 0.1 100 1000±300nA/ PPM 7SH

SO2/CF-20 φ 32.0×16.8, 2-year life 13g, filtered H2S and HCL 20 0.2 100 600±150nA/ PPM

SO2/C-100 φ 32.0×16.8, 2-year life 13gH2S--30 100 0.5 500 370±70nA/ PPM

SO2/CF-100 φ 32.0×16.8, 2-year life 13g 100 0.5 500 370±70nA/ PPM 7ST/F SO2-bf

SO2/S-20 φ 41.0×18.4, 2-year life 32gH2S--30 20 0.1 100 1000±300nA/ PPM 3SH

SO2/S-100 φ 41.0×18.4, 2-year life 32gH2S--30 100 0.5 500 370±70nA/ PPM

SO2/SF-100 φ 41.0×18.4, 2-year life 32g 100 0.5 500 370±70nA/ PPM 3ST/F

SO2/S-2000-S φ 41.0×18.0, 2-year life 27g 2,000 1 5,000 100±20nA/ PPM 3SF

SO2/SF-2000-S φ 41.0×18.0, 2-year life 27g, filter H2S, HCL gas 2,000 1 5,000 100±20nA/ PPM 3SF/F

SO2/M-20 φ 20.0×16.4, 2-year life 5.4g 20 1000±300nA/ PPM 4S SO2-AF

NH3 NH3/CB-200 φ 32.0×16.8, 2-year life 13g 100 1 200 100±20nA/ PPM 7AM and 7NH,
