YJJ Mipex-02-1-II-1.1A Mipex-02-3-I-1-1A MIPEX Infrared Gas Sensor Is Used For Gas Concentration Detection

Product Description:

YJJ Mipex-02-1-II-1.1A Mipex-02-3-I-1-1A MIPEX Infrared Gas Sensor Is Used For Gas Concentration Detection

Features:

Model of the MIPEX infrared gas sensor is MIPEX-02-1-II-1.1A. It is mainly used for gas detection. The specific parameters are as follows:

Sensor type
It is an infrared gas sensor, mainly used for gas concentration detection, and can detect combustible gases such as methane (CH4).

Performance Features
‌Detection Range‌: 0 - 100% LEL (Lower Explosive Limit)
‌Response Time‌: Rapid response design
‌Operating Environment‌: Suitable for industrial environments, with explosion-proof function
Application scenarios
Suitable for industrial safety monitoring systems, gas equipment safety inspections, etc. It can monitor gas concentrations in real time and issue warnings for potential safety hazards.

Russian MIPEX Technology Company has driven a revolutionary development in the gas analysis instrument market - providing ultra-low power consumption infrared methane and hydrocarbon sensors. The MIPEX infrared gas sensors utilize a technology-based on solid-state alloy A2B4-A2B6 light emitters and photodiodes, which can be more efficiently used for the detection of hydrocarbons and carbon dioxide. The micro infrared gas sensor design makes it an ideal choice for solar, battery-powered and wireless applications. Components based on NDIR technology were first introduced in the late 20th century. At that time, optical gas analysis sensors were large in size and required mechanical devices for modulation, switches: a rotating disc with an interference filter built-in to provide signal modulation for the bulb. Over time, with technological advancements, optical sensors have achieved a series of significant improvements. Thermosensitive detectors have the same sensitivity across the entire spectrum and can remain stable under temperature changes. The signal energy of the lamp is converted into gas concentration measurement through the reflection of light in the gas chamber and received by the thermoelectric optical sensor. This optical infrared technology has been quite successful. It has enhanced reliability and is now used by numerous manufacturers worldwide. The smaller volume sensor of MIPEX selects high light transmission efficiency micro parabolic reflectors and LEDs, which can optimize the radiation spectrum and use signal processing algorithms to achieve high stability of the sensor within the working temperature range. The realization of long-term stability is achieved through the use of PbSe-CdSe photodiodes based on the solid-state film scheme developed for this project. It is 10 times more sensitive than thermosensitive detectors and has better temperature stability and long-term stability compared to early thermoelectric detectors. MIPEX has developed and manufactured gas analysis sensors using this revolutionary new technology. MIPEX products are applicable to industry, residential and public utilities, energy, oil and gas production, transportation and storage.
Product Scope:
Russian MIPEX sensor, MIPEX infrared gas sensor, MIPEX carbon dioxide sensor, MIPEX, MIPEX evaluation board, MIPEX test software, MIPEX adapter
Main models:
MIPEX-02 series: MIPEX-02-X-I-X.1, MIPEX-02-X-II-X.1
MIPEX-03 series: MIPEX-03-X-X-1.X, MIPEX-03-X-X-2.X, MIPEX-03-X-X-3.X
MIPEX-02-X-X-3.1 S

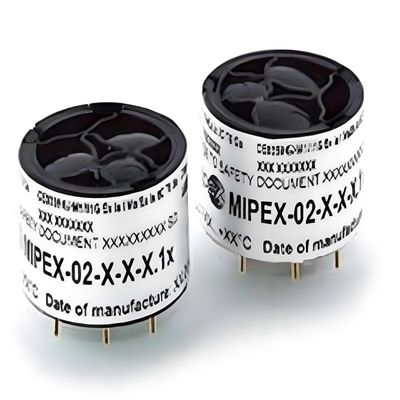

Introduction to the Russian MIPEX-02 Series Ultra-Low Power Infrared Gas Sensor:
The MIPEX-02 series ultra-low power infrared gas sensor is based on the NDIR technology principle, with an average power consumption of less than 5mW. The sensor includes an LED light source and a photodiode, and is suitable for portable and fixed instruments. The sensor is equipped with a built-in temperature sensor and integrated signal processing and calculation, enabling remote data recording in the instrument equipment and realizing wireless monitoring functions. The product has obtained international ATEX, IECEX, and ETL certifications.
MIPEX-02-3-II-1.1(A): Carbon dioxide sensor, Class II, standard metal housing, suitable for environments where explosions may occur, except in mines.
MIPEX-02-4-I-1.1(A): Methane/Methane + Ethane Sensor, Class I, Standard Metal Encapsulation, Suitable for Coal Mines.

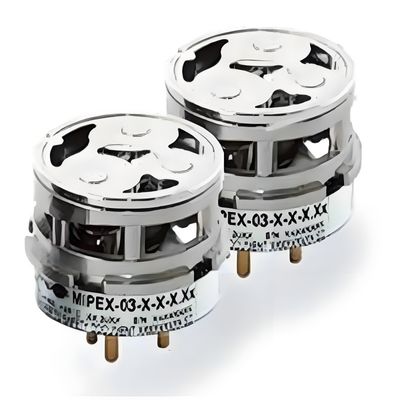

Introduction to the Russian MIPEX-03 Series Infrared Gas Sensors:
The third-generation MIPEX infrared gas sensor is suitable for both fixed and portable instruments. The MIPEX-03 sensor has a power consumption of less than 3.5 mW and a response time of less than 10 seconds. It is equipped with an internal processing circuit to achieve linear temperature compensation measurement. The MIPEX-03 series sensors have obtained the high-level safety explosion-proof grade certification "ia".
MIPEX-03-1-I-2.4: Methane sensor, Class I, 4-pin (1.5mm) digital signal, fast response type, suitable for coal mines.
MIPEX-03-1-II-1.1: Methane sensor, Class II, 4-pin (1mm) digital signal, standard metal package, suitable for environments where explosions may occur, except for mines.

Specifications:
