NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials

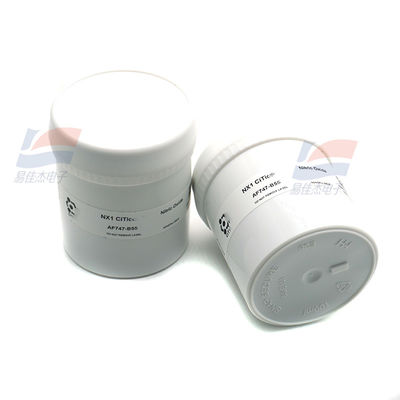

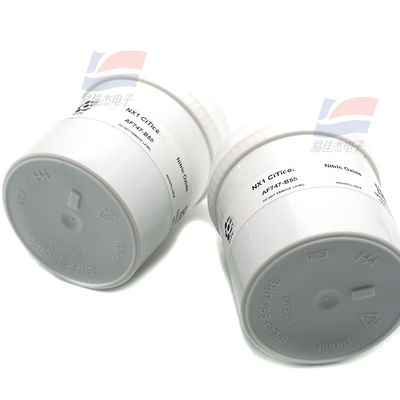

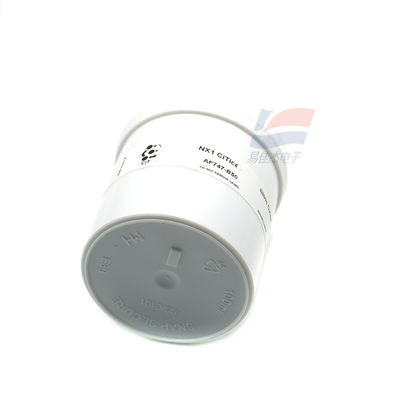

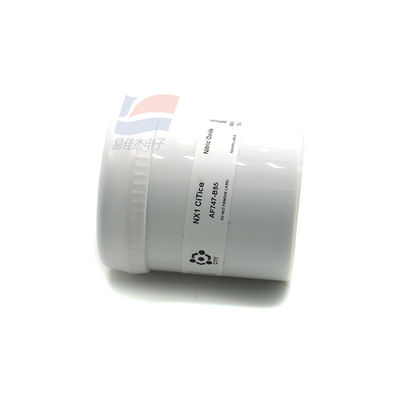

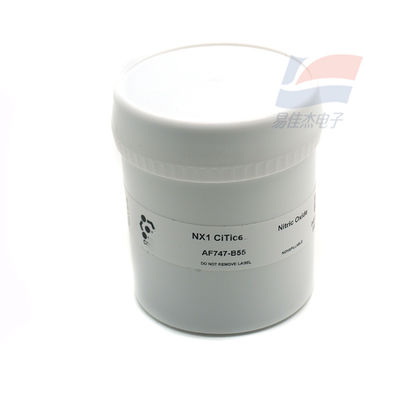

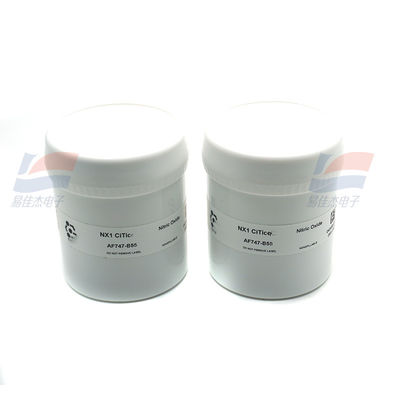

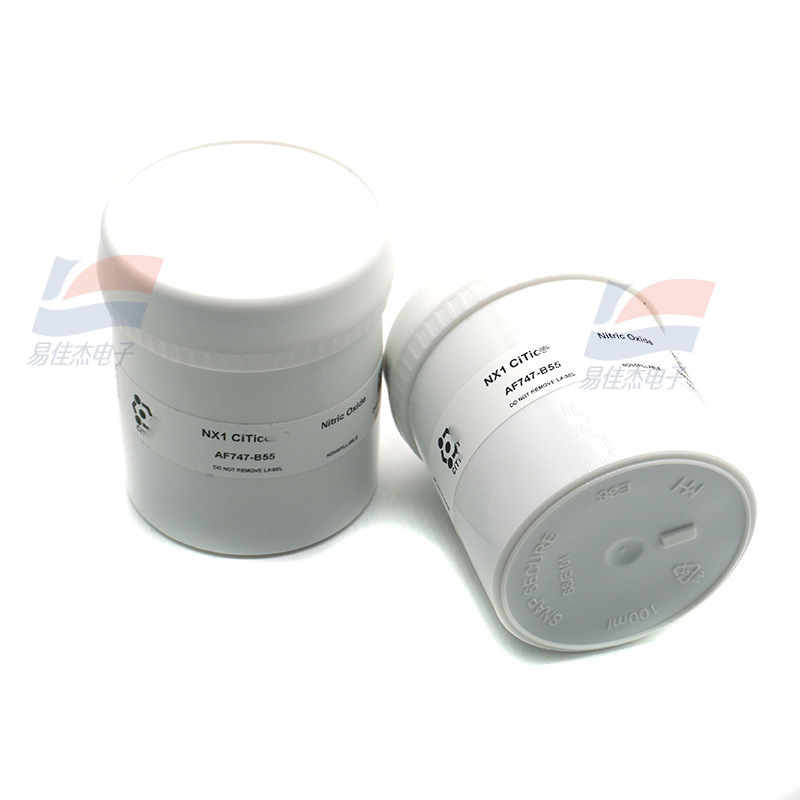

Large Image : NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials

Product Details:

Brand Name:	CITY
Model Number:	NX1 AF747-B05

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials

Description

Highlight:

Nitric Oxide gas sensor electrochemical

ABS material gas sensor

3 electrode nitric oxide sensor

NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials

Measurement:

Operating Principle	3-electrode electrochemical
Measurement Range	0-5,000 ppm NO
Filter	To remove effect of SO, in gas stream
Sensitivity	0.05 + 0.01 μAppm
Cross Sensitivity CO	<40 ppm
Response Time (T95	<8 Seconds at 20°C
Baseline Offset (clean air)	0 to +12 ppm equivalent
Zero Shift (0°c to +40°C)	<30 ppm equivalent
Resolution	1 ppm

Electrical

Recommended Load Resistor	10 Ω
Bias Voltage	+300 mv

Mechanical

Weight	32 g (nominal)
Housing Material	ABS
Orientationl	Any

Enviromental

Operating Temperature Range	-20°C to +50°C
Recommended Storage Temp	0°C to 25°C in CTL packaging
Operating Pressure Range	800 to 1100 mBar
Pressure Coefficient	0.02% signal/mBar
Operating Humidity Range	15 to 90% RH non-condensing

NX1 AF747-B05 Nitric Oxide Gas Sensor 3 Electrode Electrochemical ABS Materials 0
