CAT-16 2111B2016 Combustible Gas Sensor Constant Current 5 Year Life Time

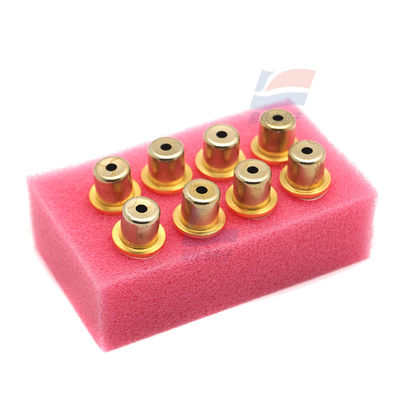

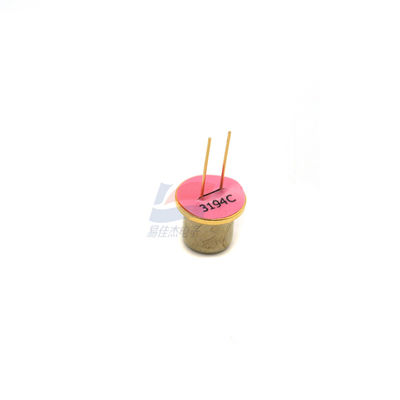

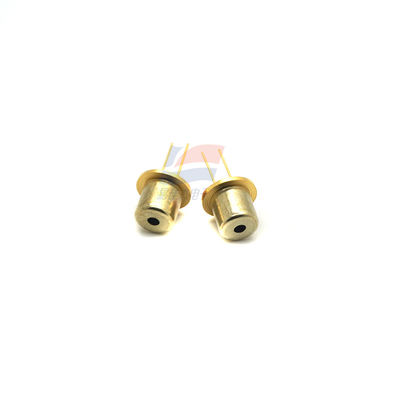

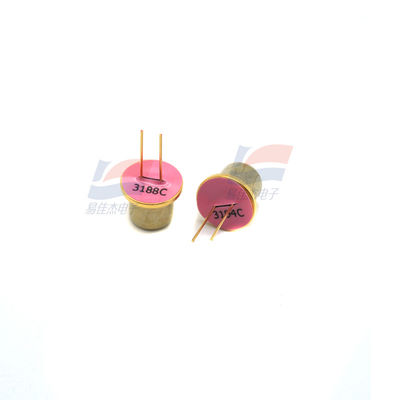

Large Image : CAT-16 2111B2016 Combustible Gas Sensor Constant Current 5 Year Life Time

Product Details:

Place of Origin:	UK
Brand Name:	CITY
Model Number:	CAT-16 2111B2016

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

CAT-16 2111B2016 Combustible Gas Sensor Constant Current 5 Year Life Time

Description

Operating Principle:

Constant Current

Gases Detected:

Most Combustible Gases And Vapours

Measurement Range:

0-100% LEL

Maximum Methane Concentration:

5% V/v

Highlight:

CAT-16 combustible gas sensor

constant current gas sensor

5 year lifetime gas sensor

CAT-16 2111B2016 Combustible Gas Sensor Constant Current 5 Year Life Time

Measurement

Sensitivity	>12 mV%methane
T90 Response Time	<10 seconds (methane)
Hexamethyl-Disiloxane	Very high
Hydrogen Sulfide	Very High

Electrical

Operating Voltage	2.7V ±0.02VDC
Detector Operating Current	200 mA
Maximum Power Consumption	580 mW

Mechanical

Can Type	Restricted
Casing Material	Nickel Silver
Pin Material	Ferrous alloy with plating of gold over nickel
Orientation Sensitivity	None

Lifetime

Expected Operating Life	Greater than 5 years
Long Term Span Drift	<±3% LEL methane per year
Long Term Zero Drift	<+3% LEL methane per year
Storage Conditions	0-20°C,45-75%RH in clean air
Storage Life	6 months in sealed container
Warranty Period	12 months from date of despatch

CAT-16 2111B2016 Combustible Gas Sensor Constant Current 5 Year Life Time 0
