1SO2 AD300-R04A-CIT Sulphur Dioxide Gas SO2 Sensors Small Size

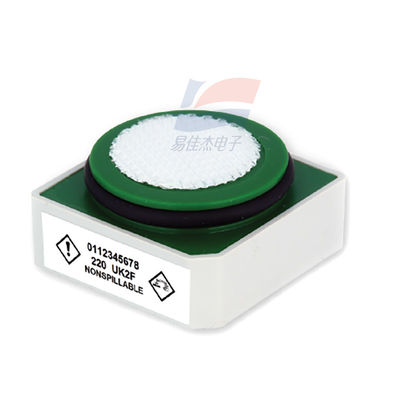

Large Image : 1SO2 AD300-R04A-CIT Sulphur Dioxide Gas SO2 Sensors Small Size

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	1SO2 AD300-R04A-CIT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000PCS/Month

Contact Now

1SO2 AD300-R04A-CIT Sulphur Dioxide Gas SO2 Sensors Small Size

Description

Technology:

Electrochemical

Measurement Range:

0.1 Ppm SO2 To 20 Ppm SO2

Maximum Overload:

150 Ppm SO2

Filter To Remove:

H2S

Highlight:

SO2 gas sensor small size

sulphur dioxide gas detector

compact SO2 sensor with warranty

1SO2 AD300-R04A-CIT Sulphur Dioxide Gas SO2 Sensors Small Size

DESCRIPTION
The 1series analogue gas sensor is compact low profile sensor utilizing the trusted Honeywell Technology. These sensors have an extended operating life of five years along with extended temperature and humidity ranges.

Specification:

Filter Capacity	400 ppm hours @ 25 ppm H2S
Sensitivity	160 nA/ppm ±40 nA/ppm
T50 Response Time	Typically < 30 seconds
T90 Response Time	< 10 seconds @ 20°C
Baseline Offset*(in clean air)	-0.2 ppm to 0.5 ppm equivalent
Zero Shift (20°C to 40°C)	< 0.2 ppm equivalent

ELECTRICAL

Recommended	Load Resistor 10 W
Bias Voltage	No bias

MECHANICAL

Weight	< 5 g
Outer Plastic Body Material	Modified PPO
O-ring Material	FKM60 ±5 shore A
Contact Material	Gold plated
Orientation Sensitivity	None

1SO2 AD300-R04A-CIT Sulphur Dioxide Gas SO2 Sensors Small Size 0
