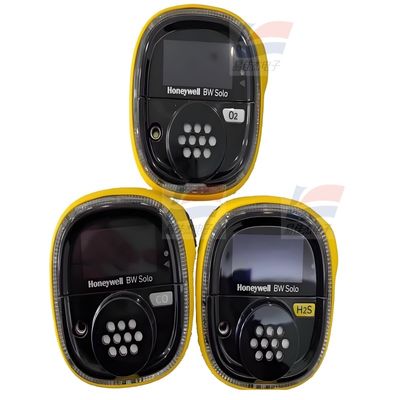

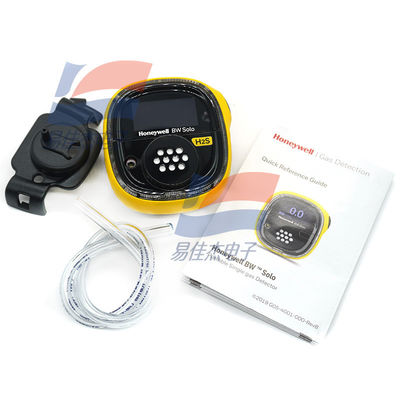

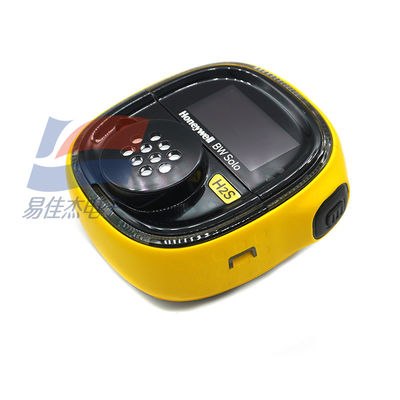

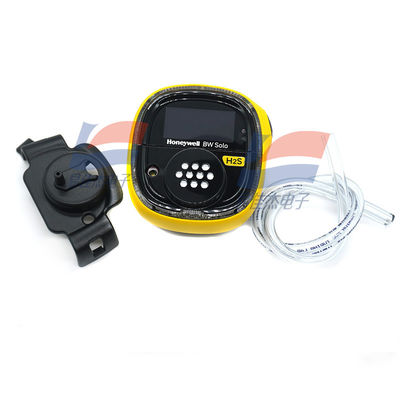

YJJ BWS2-M-Y Solo Series Of Single Gas Detectors Are Used For Industrial Safety CO Gas Monitoring

Product Description:

YJJ BWS2-M-Y Solo Series of Single Gas Detectors Are Used for Industrial Safety CO Gas Monitoring

Features:

BWS2-M-Y is a portable carbon monoxide (CO) sensor designed for industrial and hazardous environments (integrated into a single gas detector). It is primarily used for precise detection of carbon monoxide concentration and real-time alarm. The following is a detailed parameter description:

1. Core Detection Parameters

Detected gas: Carbon monoxide (CO, commonly known as gas)

Measurement range: Main model is 0-1000 ppm, some versions indicate 0-2000 ppm or 0-100 ppm (depending on the actual model configuration)

Resolution: 1 ppm, capable of accurately identifying subtle changes in concentration

Detection principle: Plug-in electrochemical sensor (with temperature compensation function), ensuring detection stability in different temperature environments

Calibration method: Supports automatic calibration and zeroing, convenient operation and high calibration accuracy

2. Environmental Adaptation Parameters

Operating temperature: -30℃ to 50℃ (some versions indicate -40℃ to 60℃, meeting the requirements for extreme environment use)

Storage temperature: Not explicitly stated, it is recommended to store within the working temperature range (avoid extreme high and low temperatures)

Humidity range: 5%-95% RH (non-condensing state), some materials indicate 0%-95% RH (no condensation), suitable for high-humidity industrial scenarios

Protection level: IP66/67 or IP66/68 (slightly different in different channels), featuring high waterproof, dustproof, and shockproof performance, suitable for harsh industrial environments

Explosion-proof level: First-level explosion-proof, compliant with I Class 0 Zone / 1 Zone, AEx/Ex ia IIC T4 Ga standards (-40℃ ≤ Tamb ≤ 60℃), suitable for flammable and explosive hazardous areas

3. Power Supply and Physical Parameters

Battery type: 3V lithium battery (such as Energizer 1CR2 series), some materials mention 3.6V lithium battery (depending on the actual configuration)

Battery life: Standard lifespan 2 years (replaceable), 1 series O₂ sensor version is 6 months Size:

Standard specification: 28mm × 50mm × 95mm (portable version)

Series differentiation: 1 series sensor model 7.0 × 6.7 × 3.6 cm (2.7 × 2.6 × 1.4 inches); 4 series sensor model 7.0 × 6.7 × 4.1 cm (2.7 × 2.6 × 1.6 inches)

Weight: 82g (standard portable version) or 103-116g (depending on sensor type), lightweight and easy to carry

Shell material: sturdy synthetic material + integrated shockproof cover, excellent shock resistance and wear resistance

IV. Signal and Alarm Parameters

Alarm types:

Sound alarm: 95 dB (at a distance of 0.25 meters from the detector), pulse output, strong penetrating power

Visual alarm: flashing wide-angle alarm lens + two red LED warning lights + alarm LCD reading prompt

Vibration alarm: built-in vibration function, suitable for high-noise environments (such as steel mills, chemical plants)

Alarm levels: low, high, TWA (time-weighted average), STEL (short-term exposure permissible concentration), non-compliance alarm, supports custom setting of alarm points

Other alarms: low battery level alarm, sensor failure alarm, over-range alarm, shutdown warning

V. Function and Compatibility Parameters

Display function: LCD liquid crystal digital display, real-time display of gas type and concentration value; background light automatically turns on when the light is dim, during alarms, or when the button is pressed

Data recording: can record and display TWA, STEL values and gas exposure peak, supports data download (via IntelliDoX expansion base or software platform)

Self-check function: automatically performs full-function self-check (sensor, circuit board, battery, sound and light alarm validity) upon startup, continuous monitoring of battery status

Wireless function: Bluetooth Low Energy (BLE), can be connected to Honeywell Safety Communicator application, realizes real-time monitoring, data transmission and event log management

Language support: includes Chinese, English, French, Spanish, etc. (Lite version supports 5 languages), compatible with multi-language usage scenarios

Certification and compliance: complies with ATEX (Sira 18ATEX2243), IECEx (IECEx SIR 18.0058), EMC Directive 89/336 EEC, etc., has FCC ID, IC certification

VI. Application Scenarios and Compatibility

Application fields: widely used in smelting, steel mills, coal mines, chemical, petrochemical, municipal, papermaking, fire protection and other dangerous areas where carbon monoxide exists, for personnel safety protection and gas concentration monitoring

Sensor compatibility: as the core component of a single gas detector, compatible with Honeywell BW Solo series equipment, supports plug-in sensor replacement (can be extended to detect H₂S, O₂, SO₂, etc., and requires matching corresponding sensor model) Note

Some parameters (such as measurement range and protection level) may vary slightly according to different channel labels. It is recommended to refer to the original factory manual or official configuration of the product for details. This sensor is integrated into a portable detector. Its core advantages include portability, simple operation, and wide environmental adaptability. It is a commonly used device for carbon monoxide safety monitoring in industrial scenarios.
